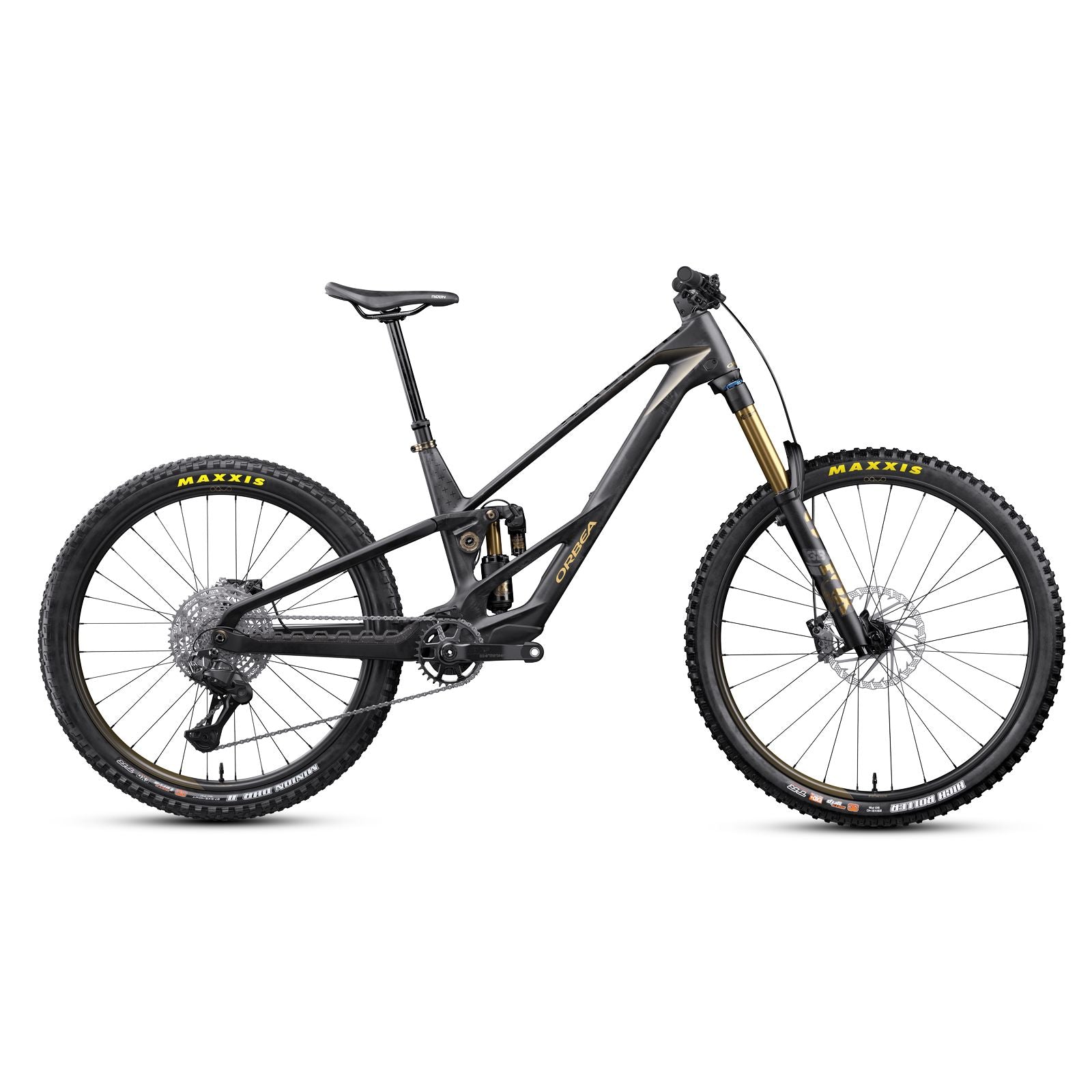

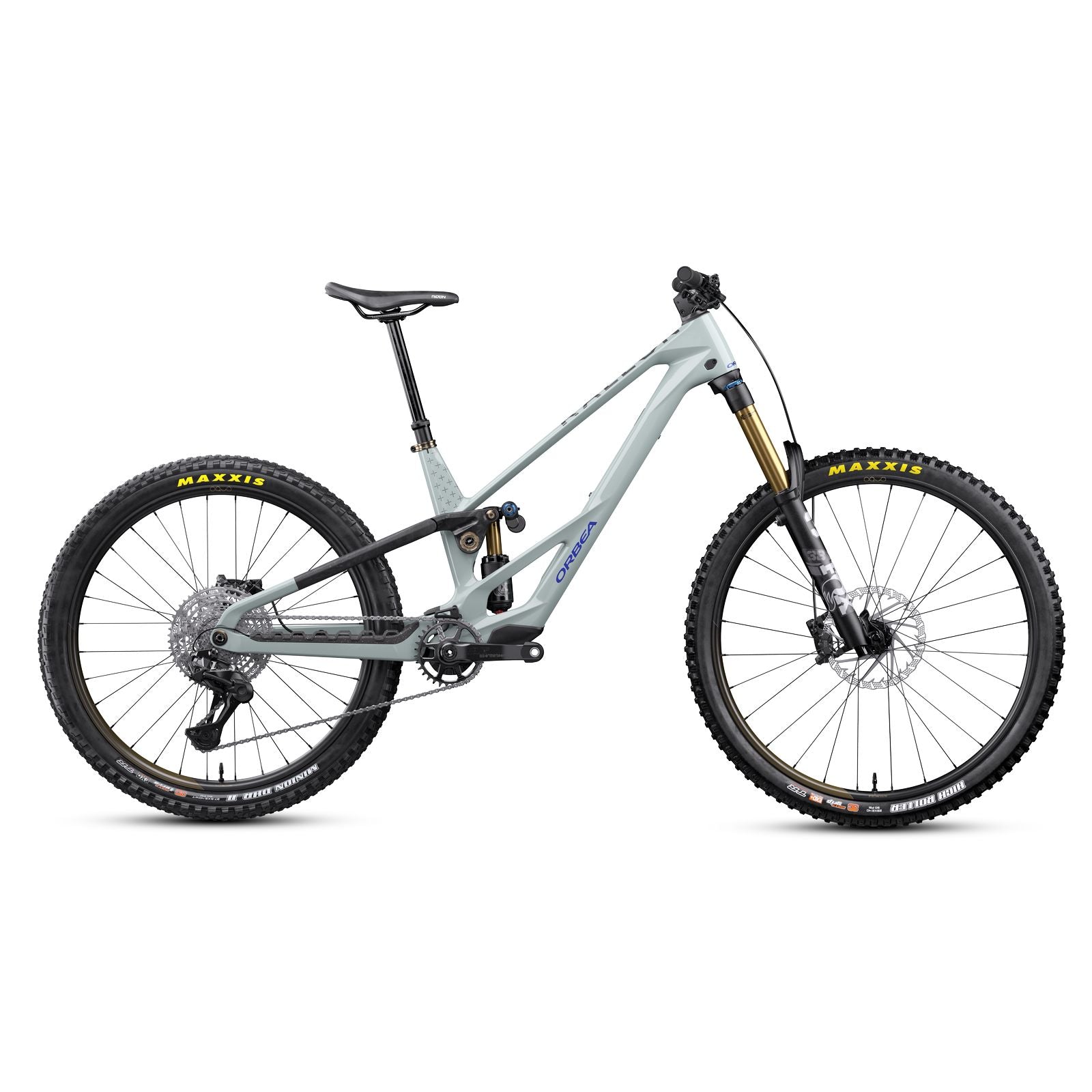

2027 Orbea Rallon RS TEAM Mullet 20mph
Description
Switch on and everything fades except the ride. The world sharpens, the trail calls, and every move feels inevitable. Climbing becomes rhythm, descending becomes instinct, and time seems to stretch as the ride takes over.

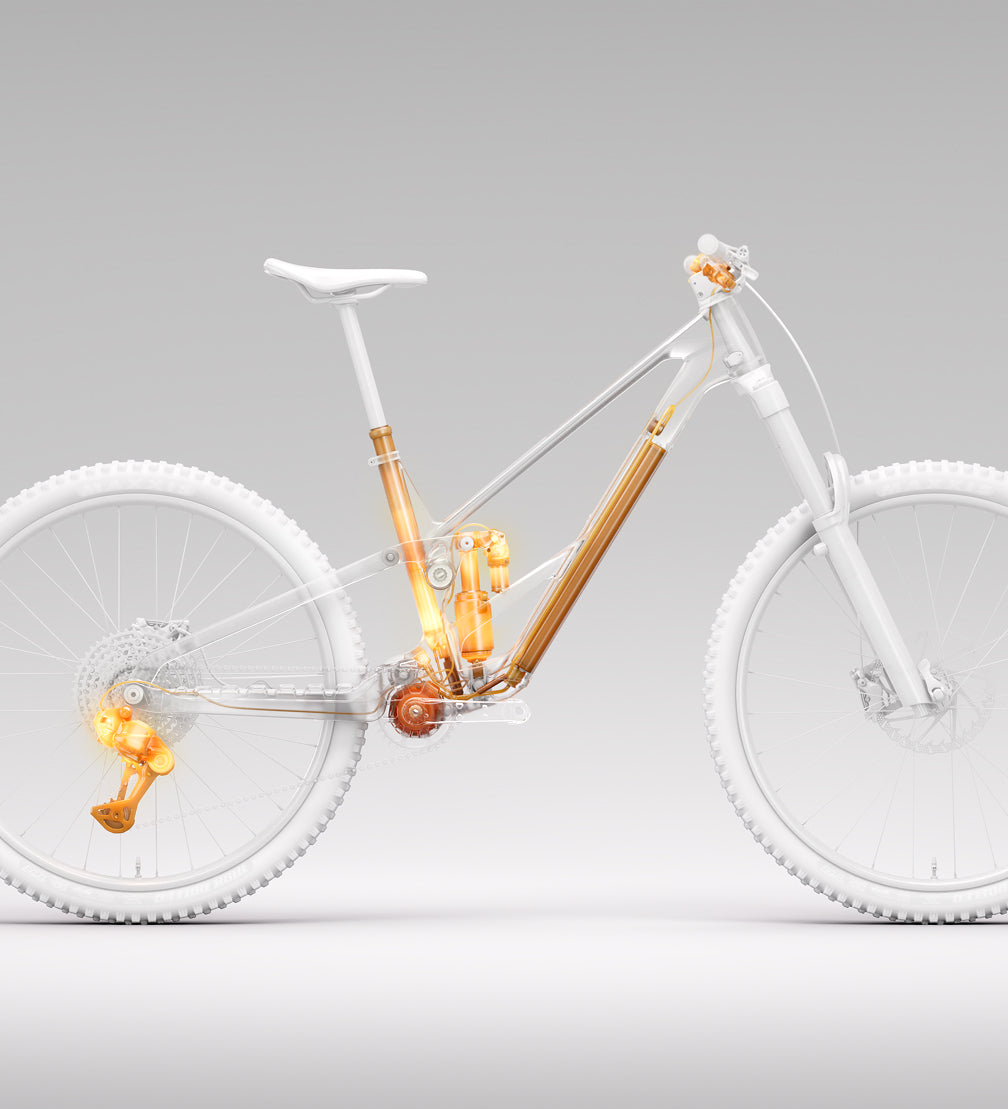

CONNECTED INTELLIGENCE
Something totally new for the industry, our seamless system monitors dropper position,
motor information, and gear selection, adjusting the suspension in real time for
maximum performance.

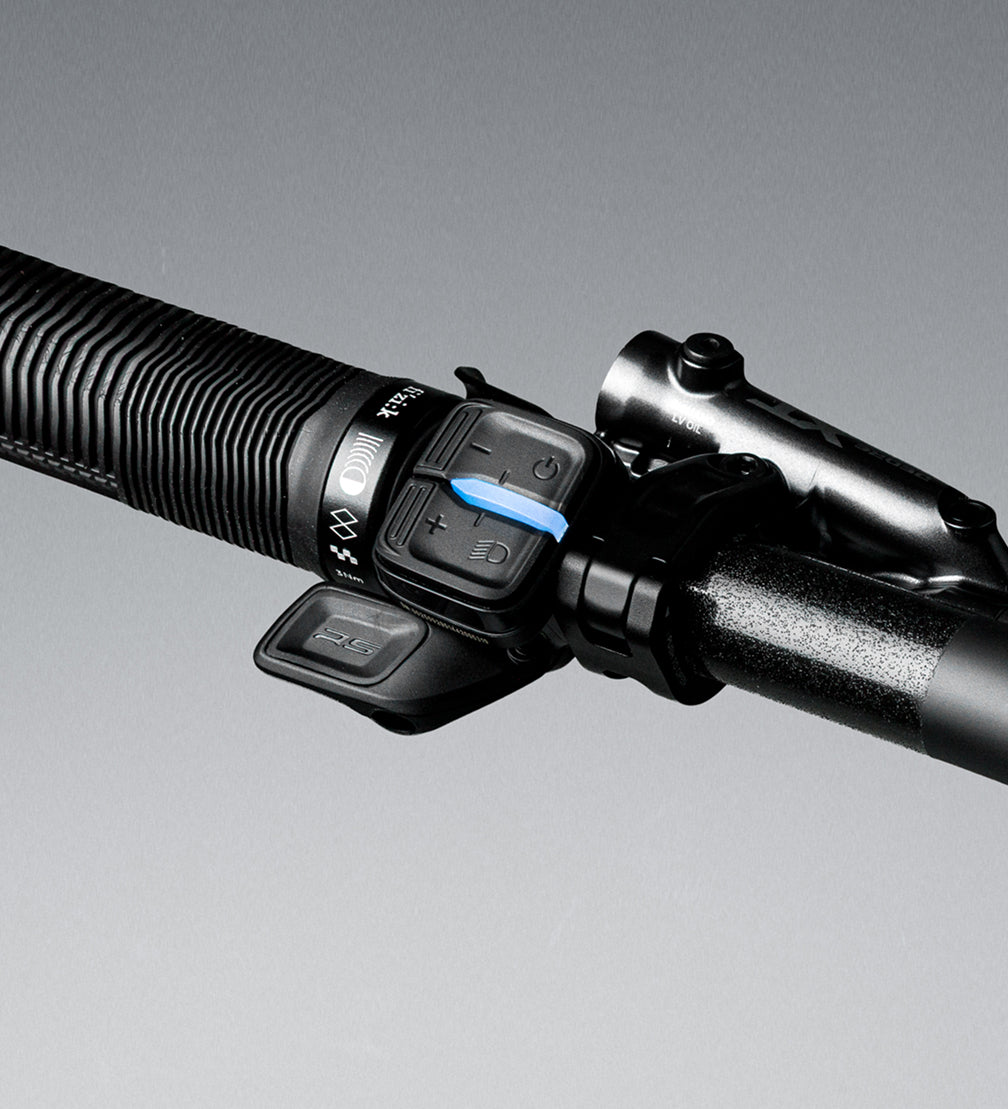

RS CONTROL SYSTEM: THE FUTURE AT YOUR FINGERTIPS
One intuitive control for assistance, battery information, suspension control, and
dropper.

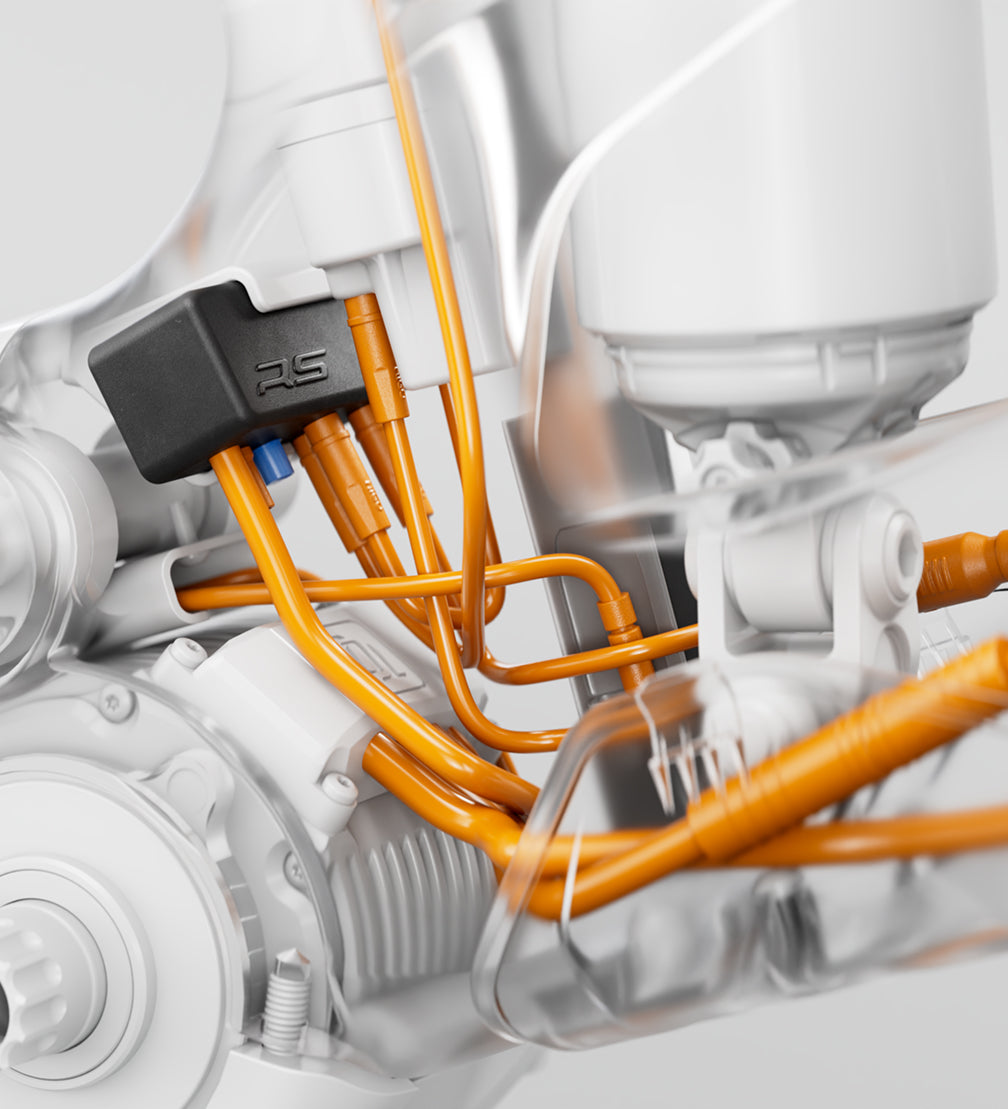

ONE SYSTEM. ONE BATTERY. TOTAL CONTROL.
Motor, dropper, gears, suspension, and display are all powered by the main battery. No
extra batteries to charge!
200W / 40NM MAXIMUM ASSISTANCE
Subtle and silent, this is a subtle assistance that adds a bit more flow to each climb.

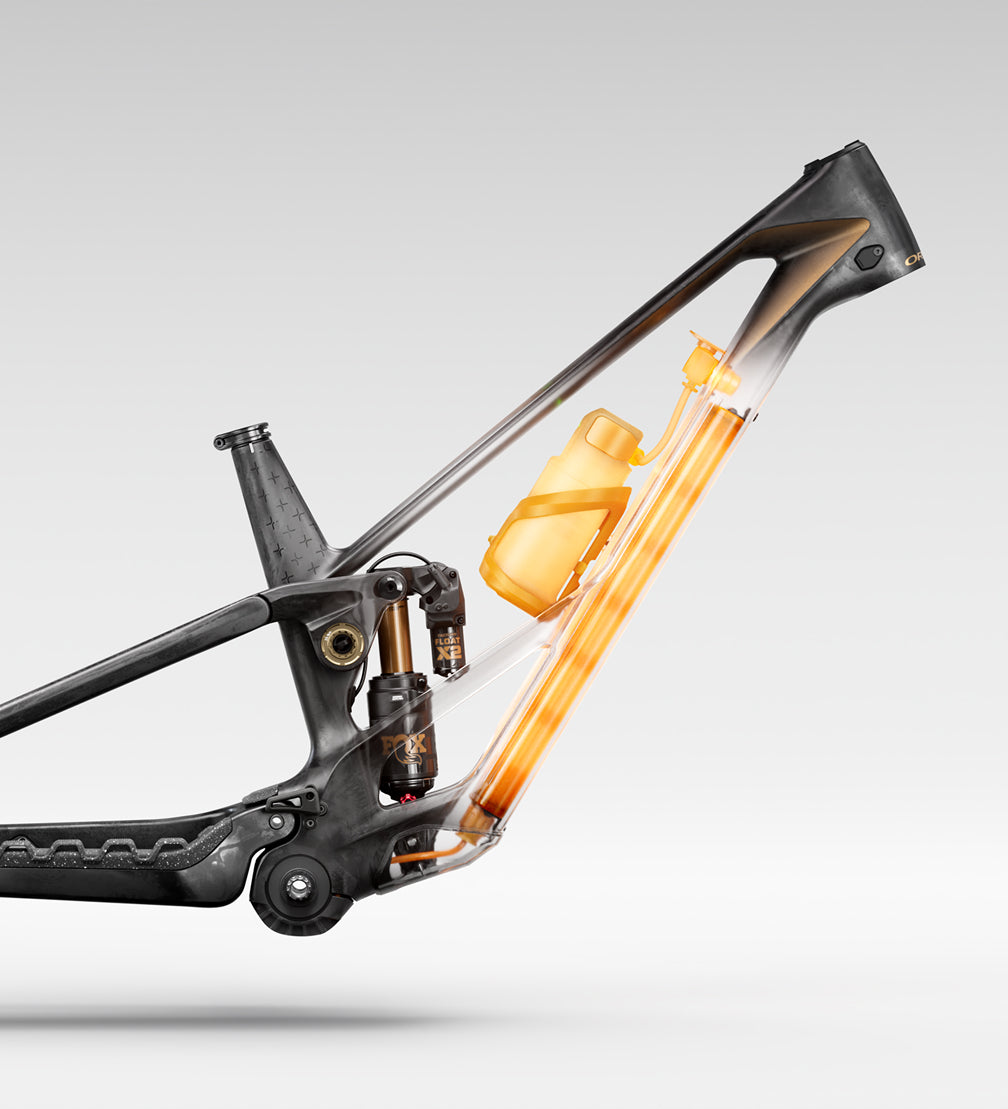

290WH BATTERY + 160WH RANGE EXTENDER
The main battery offers 1200-1800m of climbing, or add the optional range extender for
longer rides.

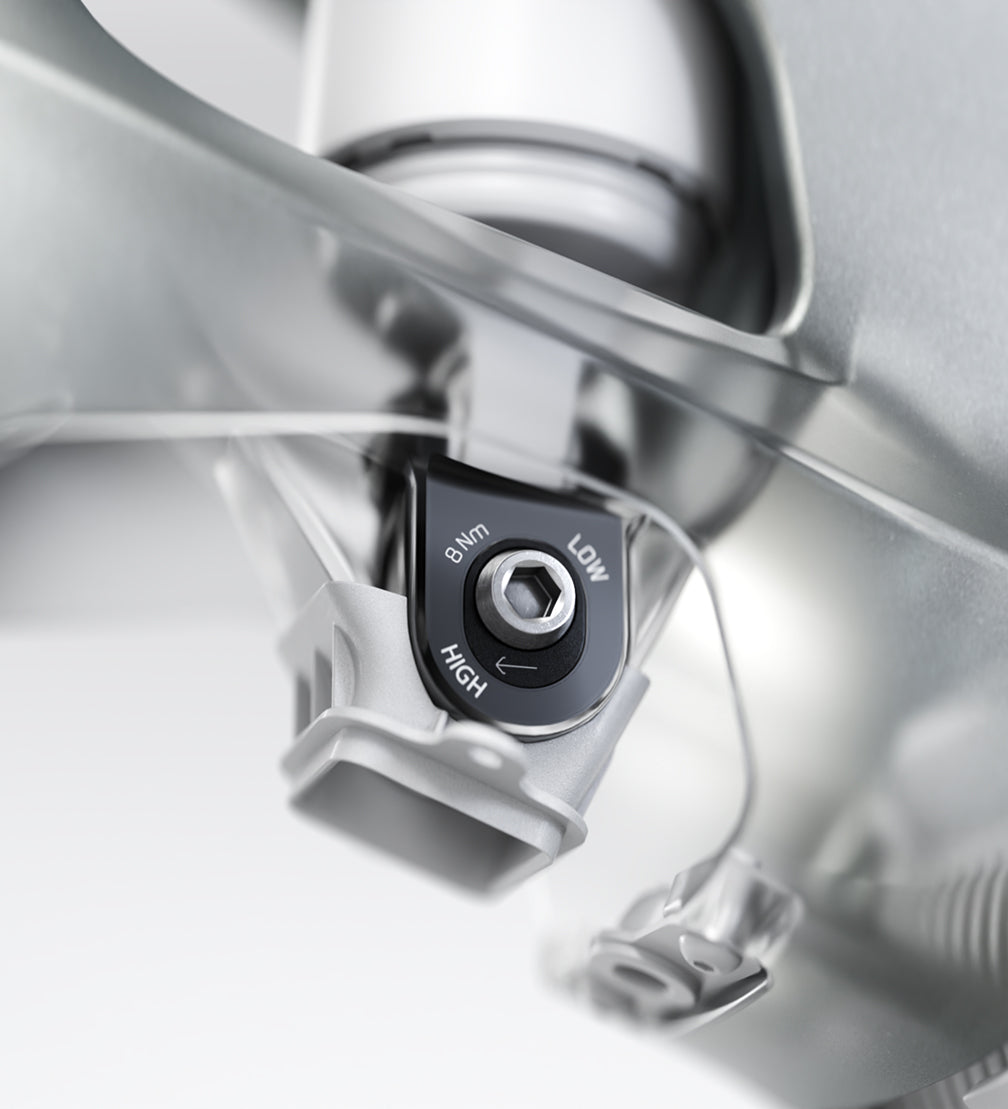

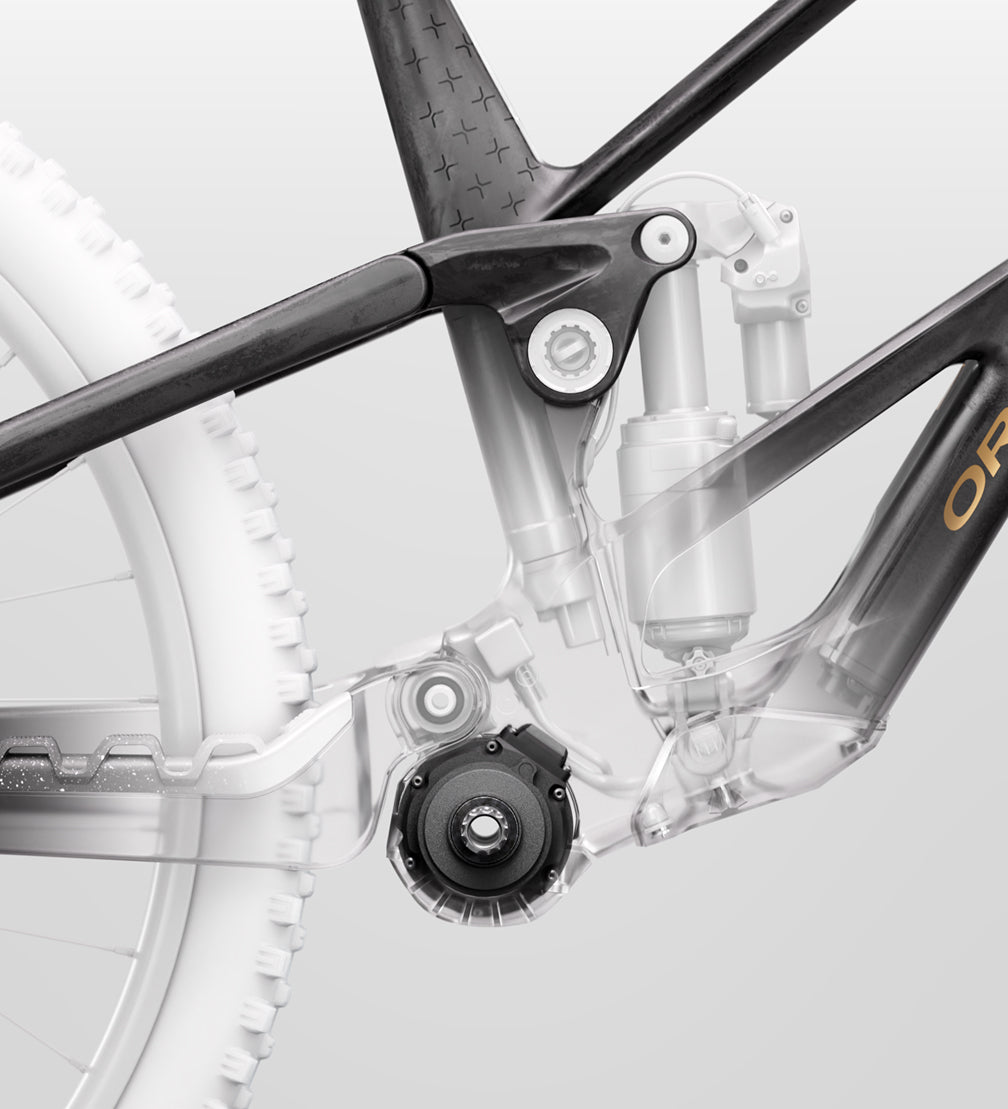

ATTITUDE ADJUST
Our quick flip system lets you change the geometry in just a few seconds. You can
steepen the geometry for the climbs and slacken it for maximum control on the
descents.
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Frame | Orbea Rallon RS OMR. Mullet and 29” wheels compatible. Concentric Boost 12x148 |
| Fork | Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima |
| Shock | Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x62.5mm |
| Headset | Alloy 1-1/2”, Black Oxidated Bearing |
| Handlebar | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Stem | OC Mountain Control MC11 Alu SL, 0º |
| Shifters | Shimano XT M8250 |
| Rear Derailleur | Shimano XT M8260 SGS |
| Chain | Shimano M7100 |
| Cassette | Shimano CS-M8200 10-51t 12-Speed |
| Crankset | e*thirteen Helix Race alloy 32T |
| Chainring | 32T |
| Chainguide | Orbea eBike chainguide |
| Brakes | Shimano XT 8220 Hydraulic Disc |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC Mountain Control MC10, 31.6mm, eDropper, Travel with optional 150mm, 180mm & 210mm |
| Wheelset | Oquo Mountain Control MC32TEAM |
| Front Tire | Maxxis High Roller III 2.40” 60 TPI 3CG/EXO+/TR MaxxGripp |
| Rear Tire | Maxxis Minion 2.40” 120 TPI 3CT/DD/TR MaxxTerra |
| Battery | TQ HPR 290Wh Optional TQ Range Extender 160Wh |
| Motor | TQ-HPR40 |
| Charger | TQ Charger 4A |
| Remote | Orbea System Controller with eDropper Remote |
Don't forget your helmet!
Specifications
Motor
TQ-HPR40
Battery
TQ HPR 290Wh
Fork
Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
Frame
Orbea Rallon RS OMR Carbon
Shock
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x62.5mm
Chain
Shimano M7100
Cassette
Shimano CS-M8200 10-51t 12-Speed
Chainring
Brakes
Shimano XT 8220 Hydraulic Disc
Rotor
Wheelset
Oquo Mountain Control MC32TEAM
Tires
Maxxis High Roller III 2.40" 60 TPI 3CG/EXO+/TR MaxxGripp
Saddle
Fizik Terra Ridon X1 145mm
