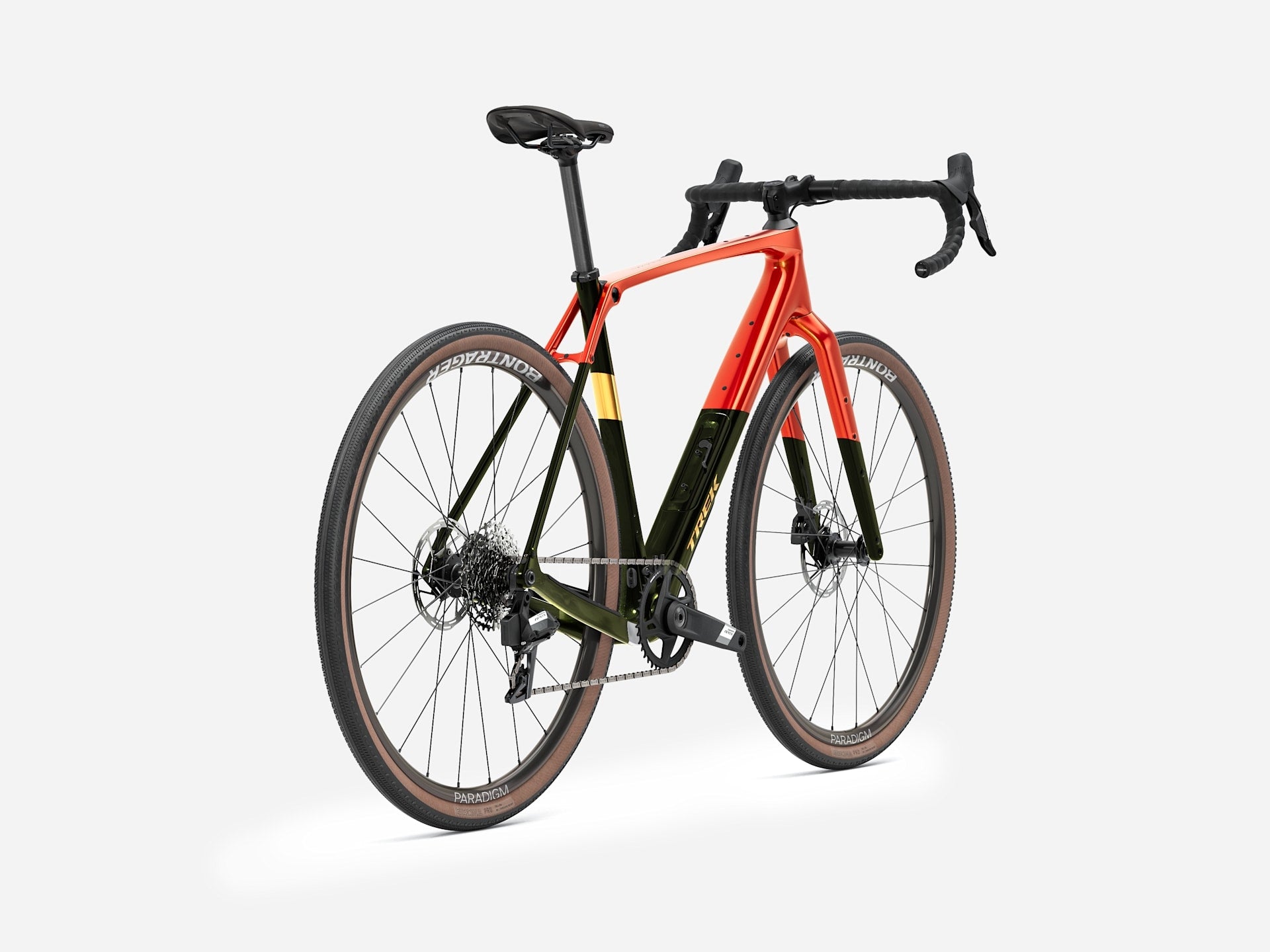

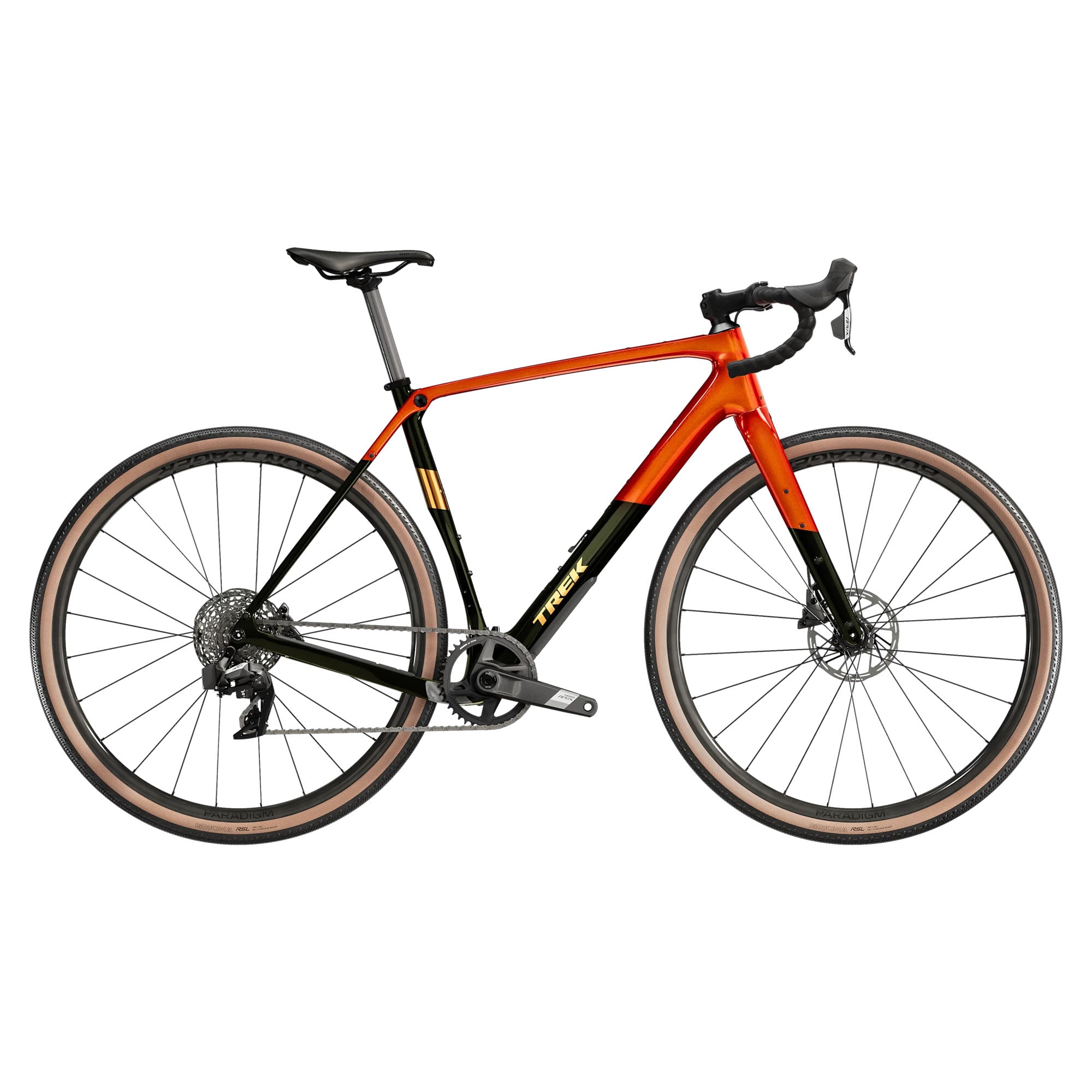

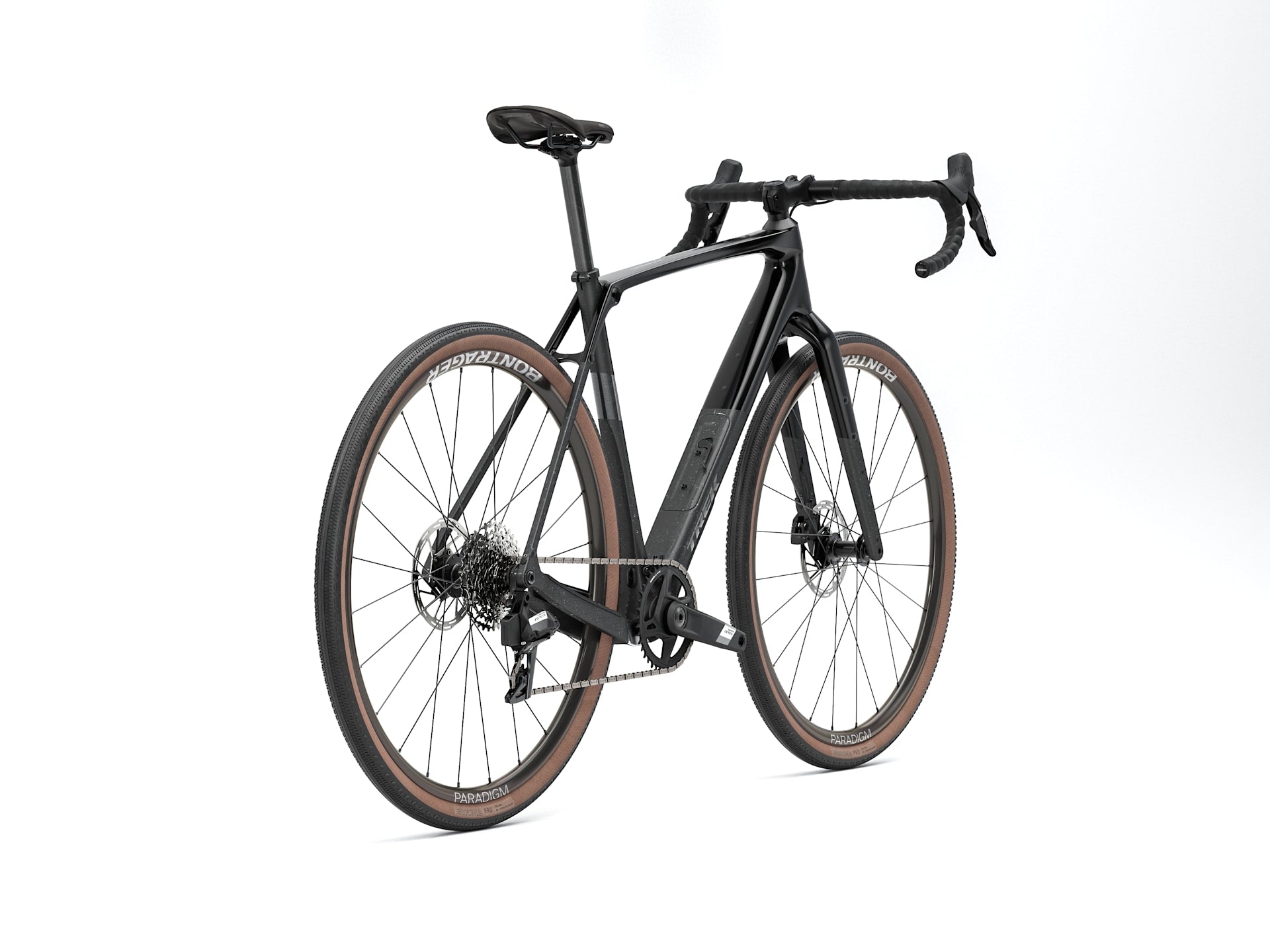

2025 Trek Checkpoint SL 5 AXS
Description
The 2025 Trek Checkpoint SL 5 AXS is a high-performance gravel bike built for long-distance riding and adventure. Designed to deliver speed and comfort on rough gravel, it’s a standout option among gravel bikes in Canada.

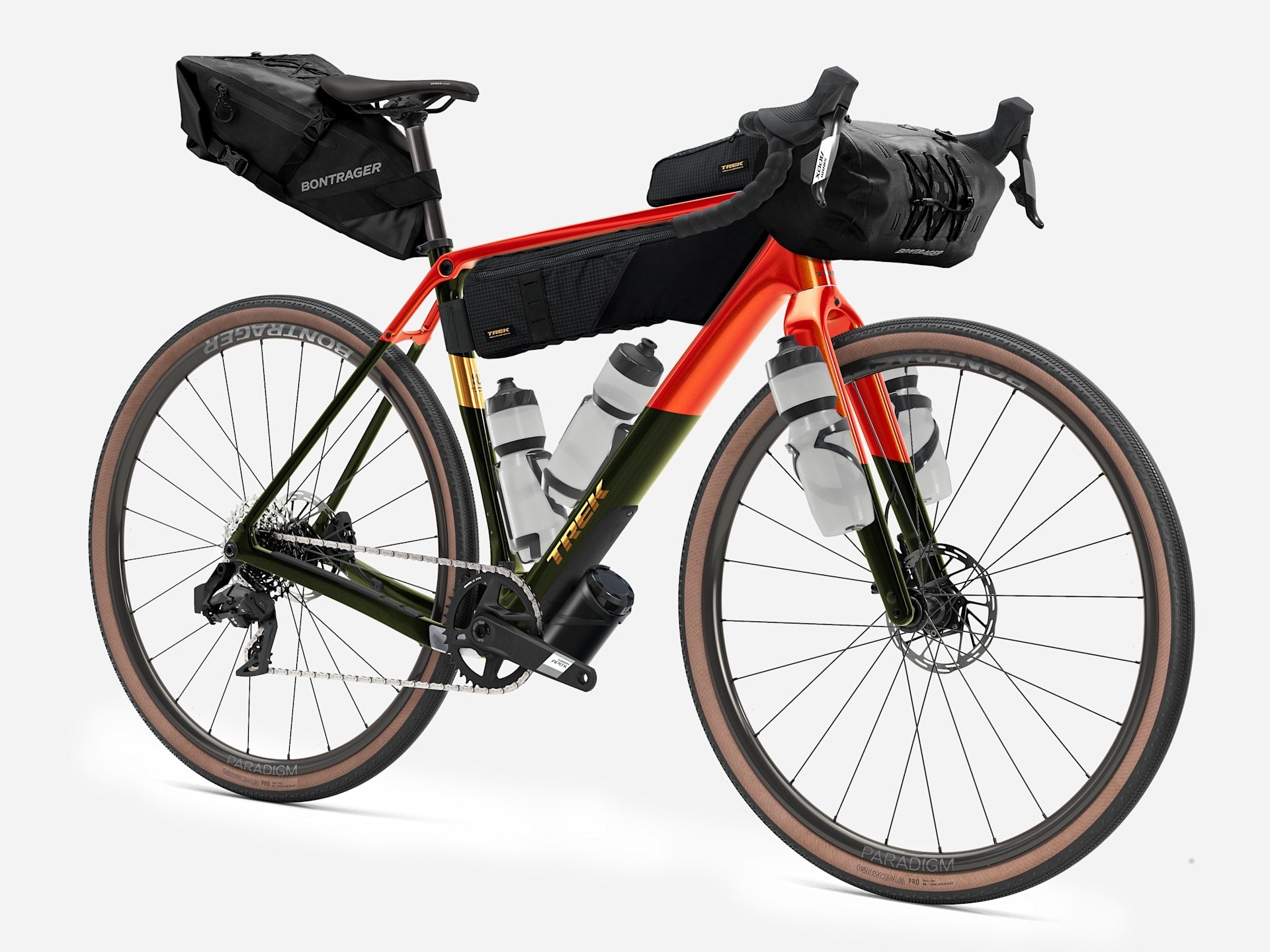

This carbon gravel bike features an endurance-focused frame that smooths rough surfaces while remaining efficient on pavement. Wireless electronic shifting provides precise gear changes, and hydraulic disc brakes deliver consistent braking in all conditions. With generous tire clearance and multiple mounting points, the Checkpoint SL 5 AXS is ready for fast gravel rides, endurance events, and bikepacking adventures.
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, removable FD hanger, UDH, 142x12mm chamfered thru axle |

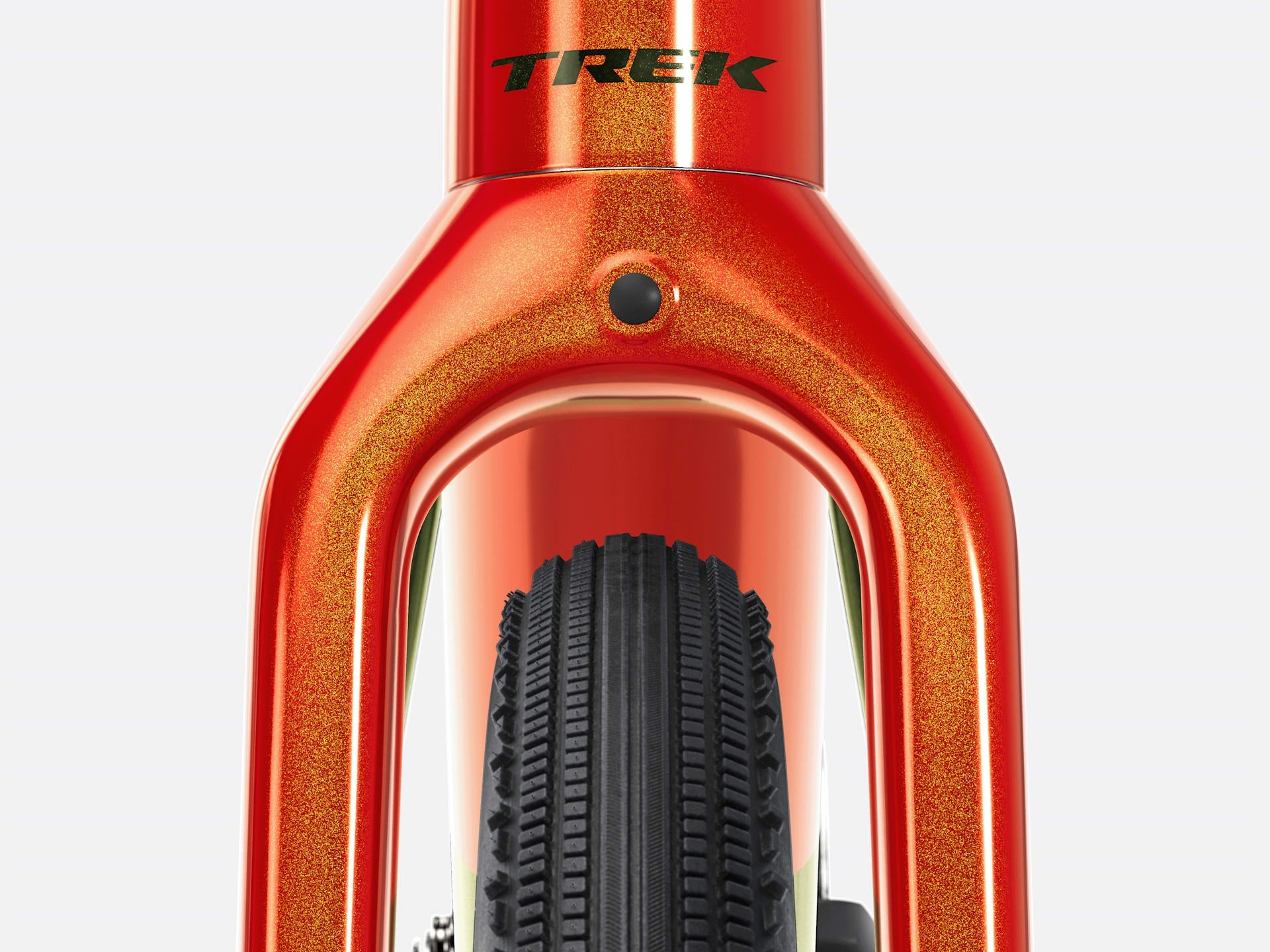

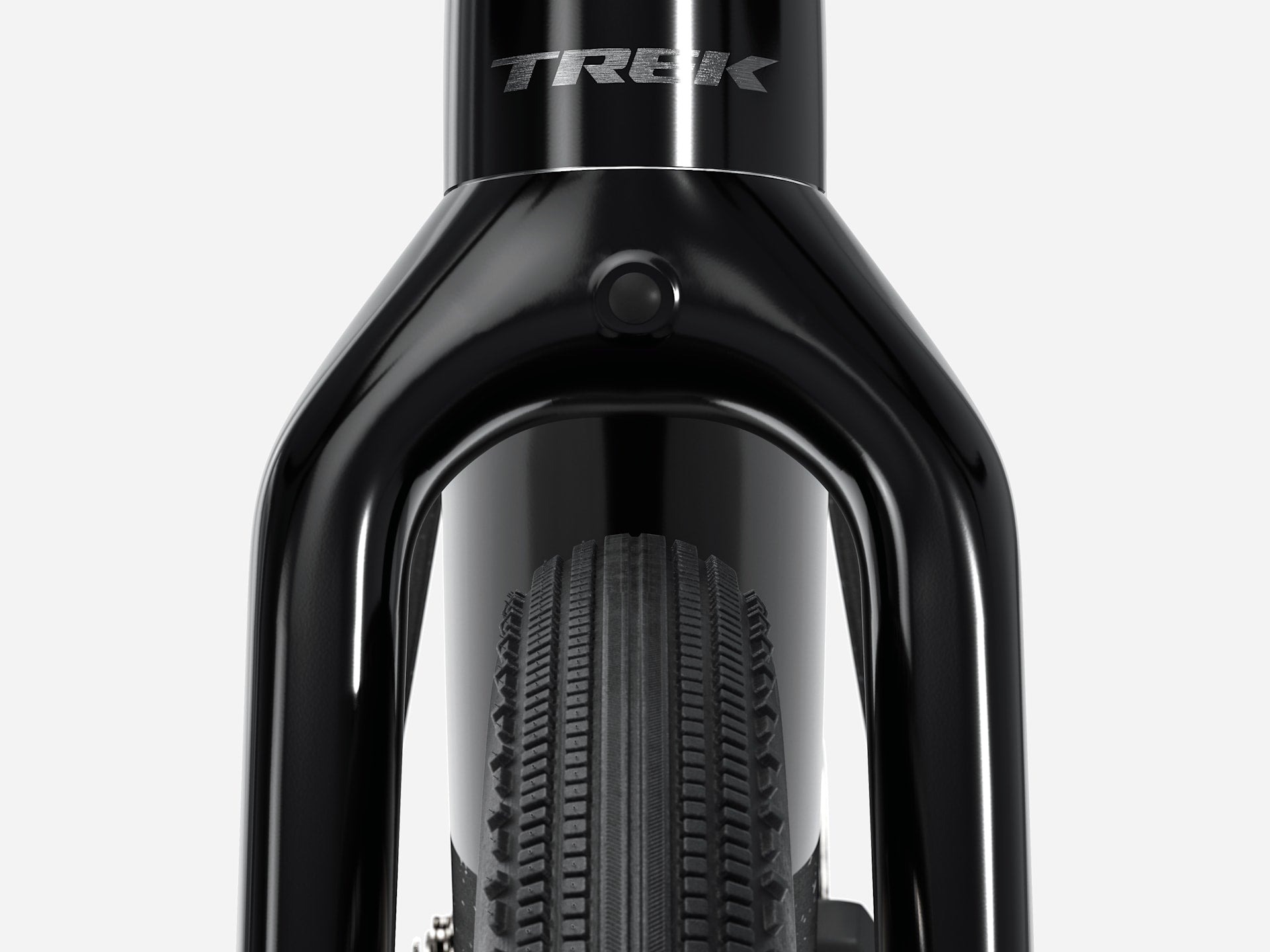

| Fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |

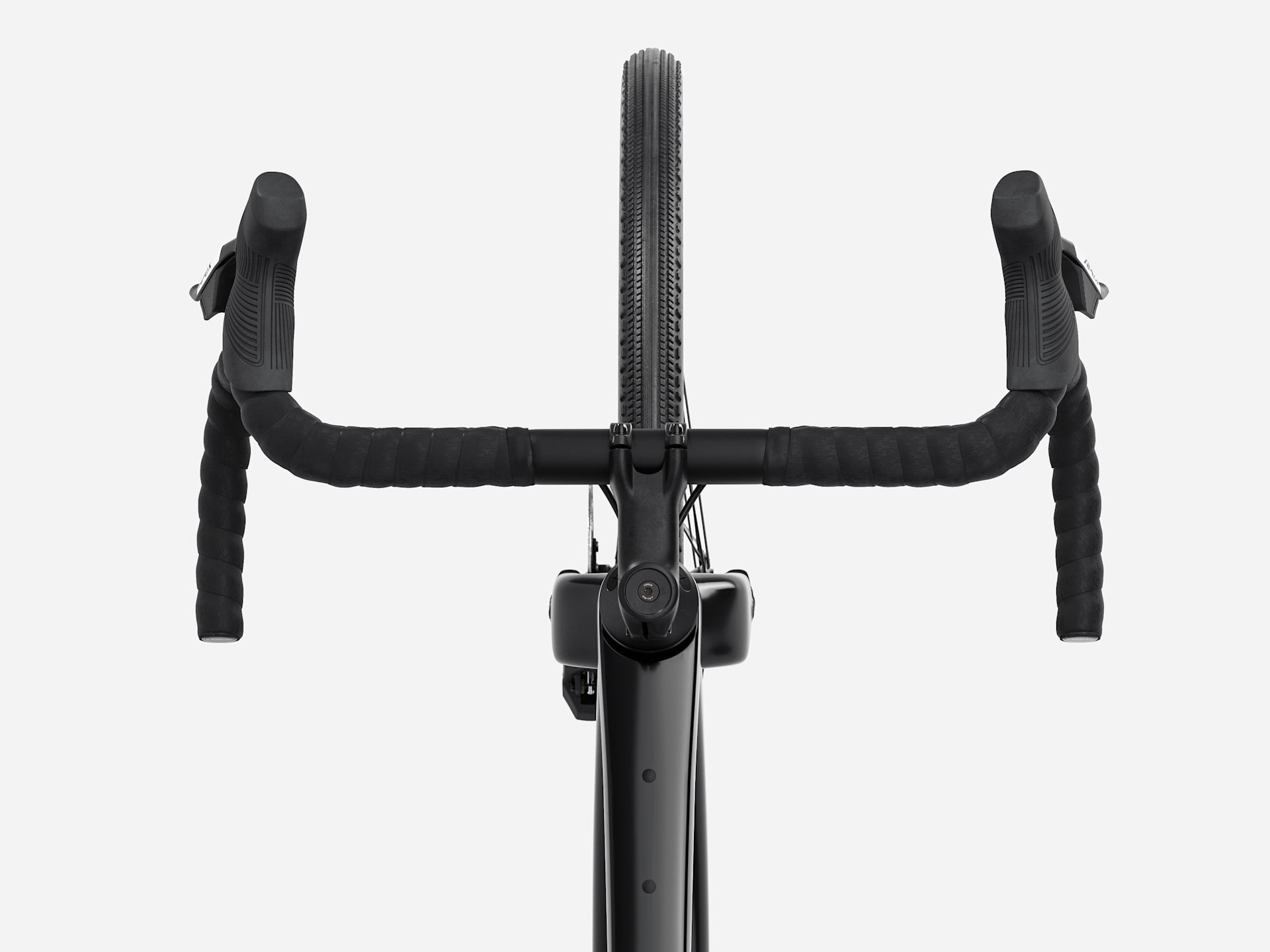

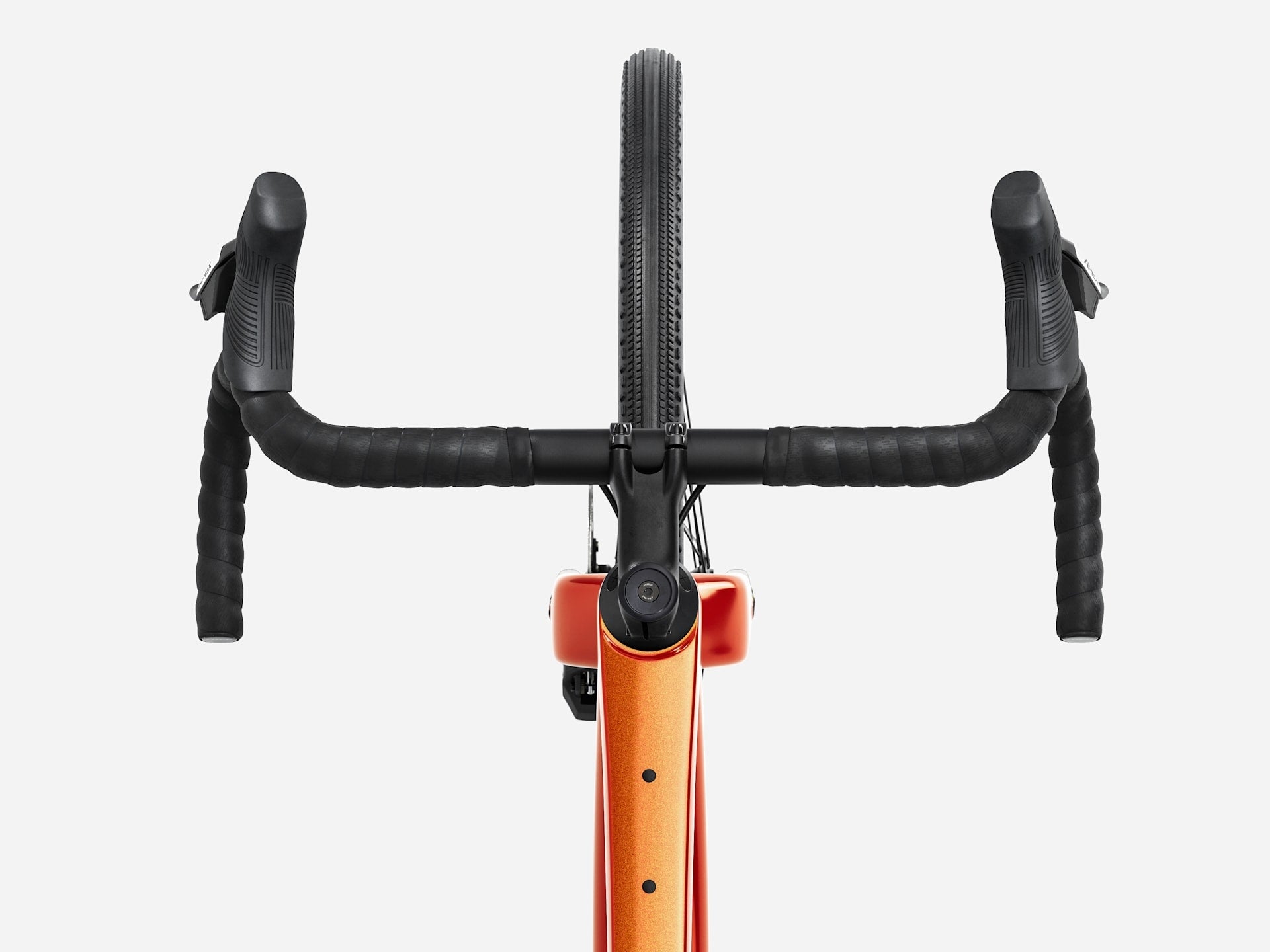

| Handlebar | Bontrager Elite Gravel, alloy, 42cm width |
| Grips | Bontrager Supertack Perf tape |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Shifters | SRAM Force AXS D2, 12 speed |

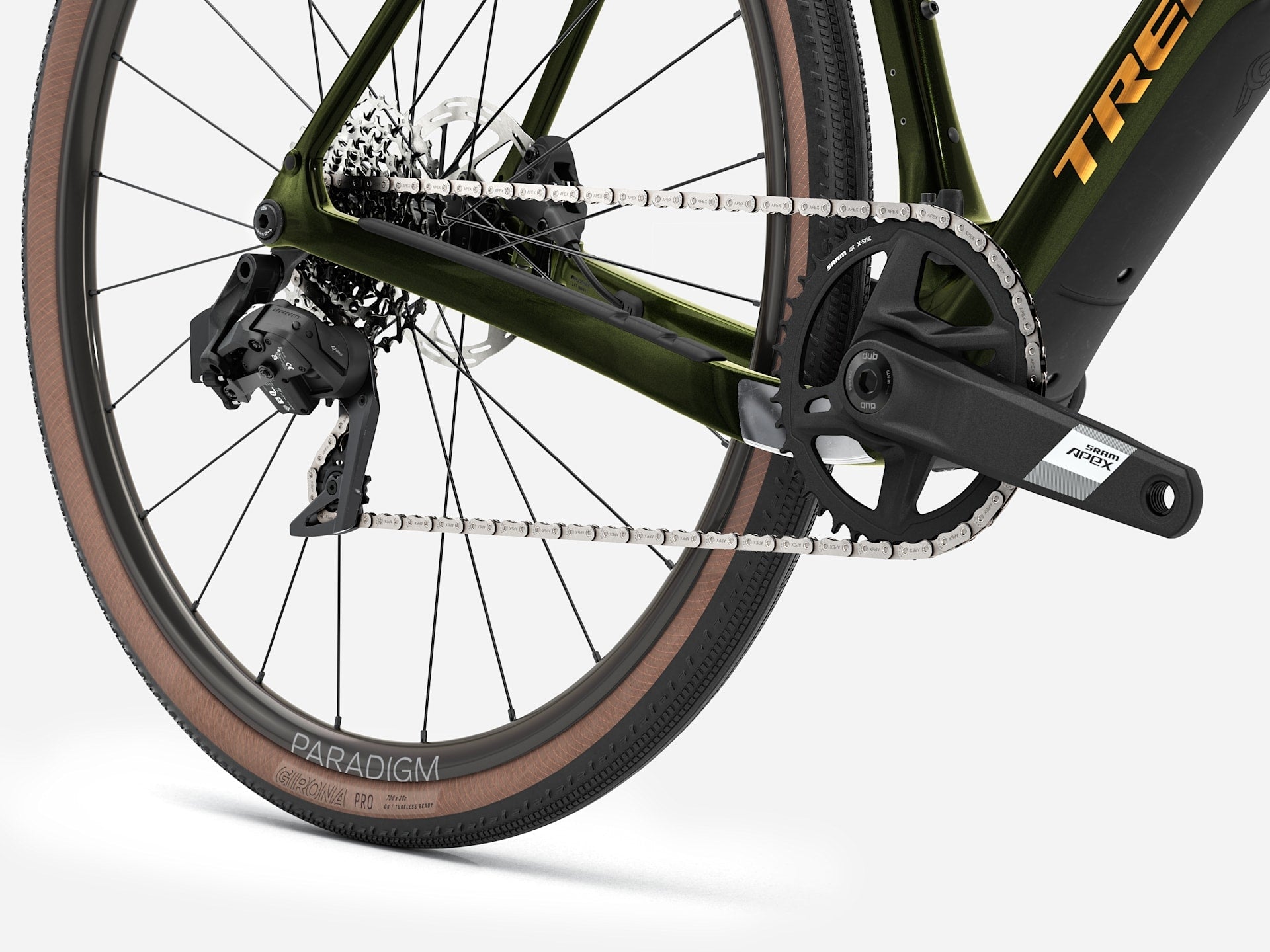

| Rear Derailleur | SRAM Apex XPLR eTap AXS, 44T max cog |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Chain | SRAM Apex, 12 speed |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Crankset | SRAM Apex 1, 40T, DUB Wide, 170mm length |
| Chainring Maximum Size | 1x:44 2x: 46/30 |
| Brakes | SRAM Force Flat mount disc |
| Brake Rotors | SRAM Paceline, rounded, centerlock, 160mm |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Front Wheel | Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
| Rear Wheel | Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
| Front Tire | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Rear Tire | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Battery | SRAM AXS battery pack (with charger) |
| Weight | ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes) |
