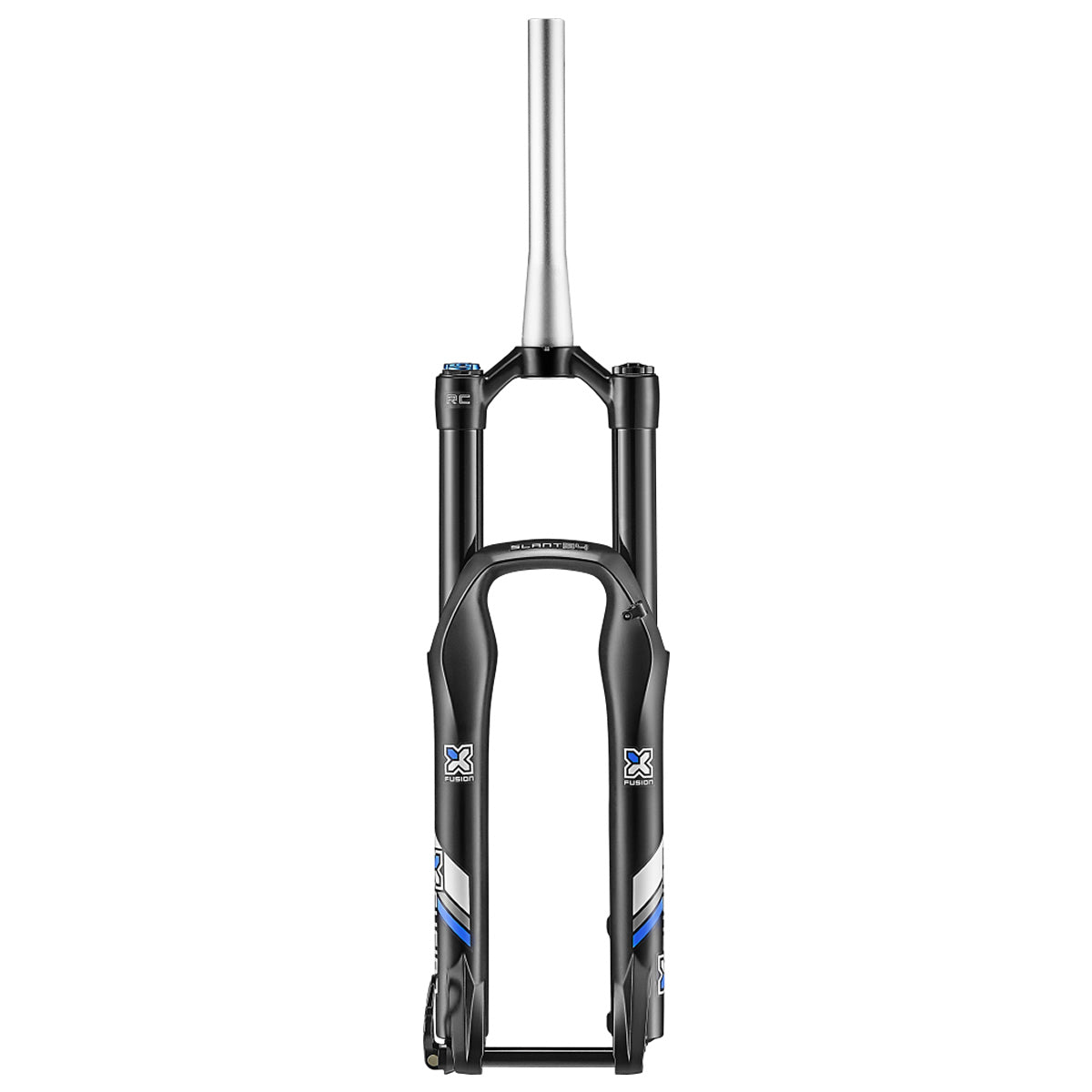

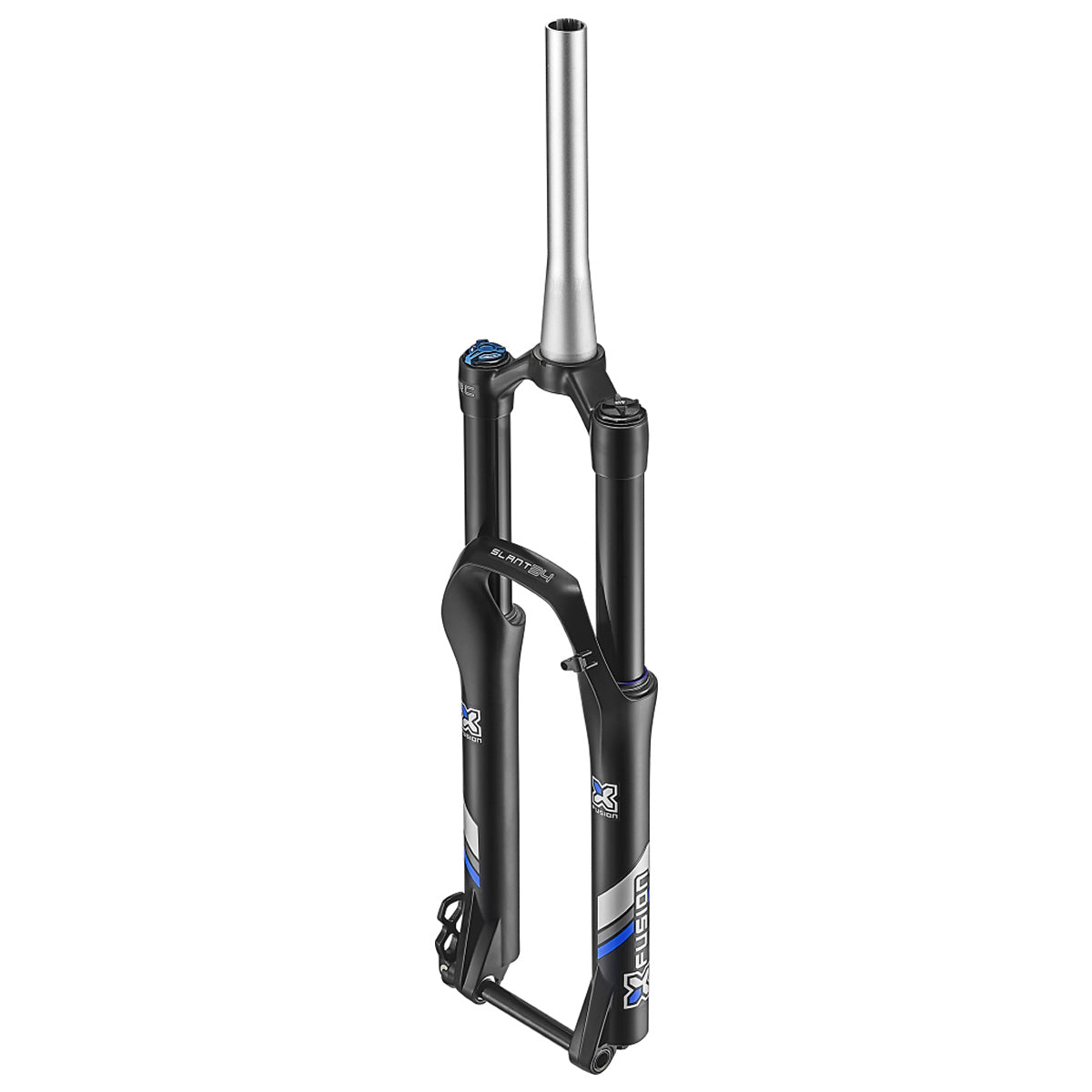

X-Fusion Slant RC 34 Suspension Fork

The Slant series was developed to bridge the gap between lightweight trail forks and high performance all-mountain forks. At X-Fusion we have taken note that not only suspension products have been progressing over the last few years, but the rider has as well. You all are fitter, faster, stronger and are looking for a product to match. The 34mm stanchion tube chassis provides the perfect balance between weight and strength in the trail and all-mountain category.

• The RC Damper is a fully cartridge based damper which features low speed, independently adjustable compression and rebound damping adjustment.
• Nvolve Wiper seals reducing seal drag and increasing durability
• Weight: 4.2lbs/1905 grams
• Wheel Size: 26”
• Stanchion: 34mm
• Spring: Air
• Damper:  RC Cartridge
• Adjustments : Low Speed Comp., Rebound,,Air Pressure
• Steerer Tube: 1 1/8" to 1.5" tapered, 148mm long
• Axle: LockX 15mm(100mm)
• Color: Flat BlackAxle to Crown: 545mm @ 160mm
• Offset: 40mm
• Max Rotor Size:180mm/203mm (XF adaptor only)
