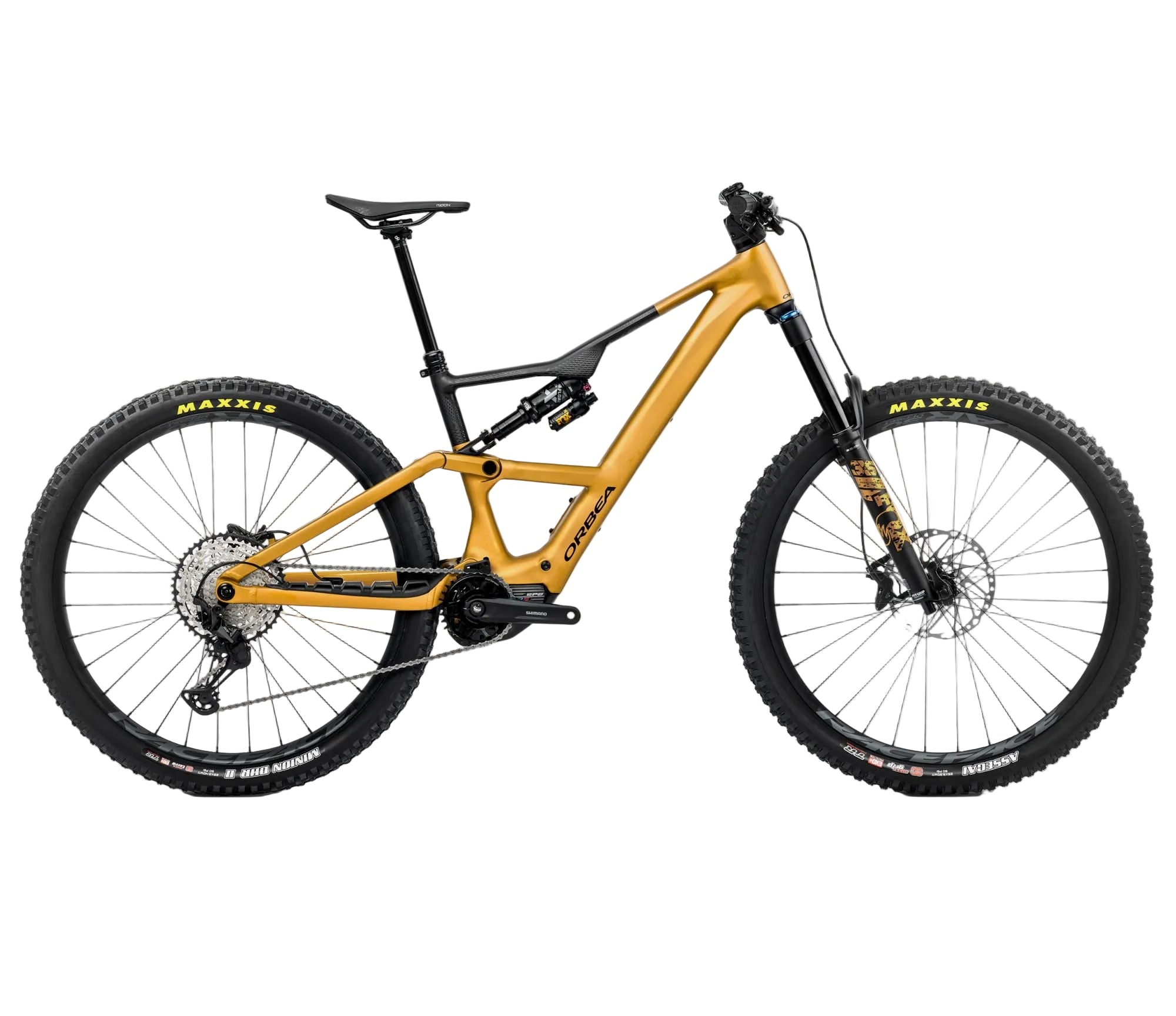

2026 Orbea Rise LT H10 20mph

All-day trail performance, no compromises. The 2026 Orbea Rise LT H10 20mph is the alloy entry point into Orbea's most capable eMTB platform — and it doesn't feel like an entry point at all. Built around a hydroformed aluminium frame with 160mm of front travel and 150mm at the rear, this is a genuine enduro-capable eMTB that rides with the agility and natural feel of a trail bike, with enough motor support to keep you riding harder for longer.

The Shimano EP801 RS motor delivers a class-leading 85Nm of torque at up to 20mph pedal assist, tuned through Orbea's Rider Synergy software to provide smooth, natural power delivery rather than the on/off character of less refined systems. The 630Wh integrated battery — the largest available in the Rise LT platform — provides the range to push beyond your usual limits, and the EN600-L handlebar remote gives you intuitive, on-the-fly control over assist levels without taking your eyes off the trail.

The Attitude Adjust flip chip in the lower link lets you toggle between a 64° and 64.5° head angle on the go — slacker for rowdy descents, steeper for efficient climbing. Concentric rear suspension design, fully sealed bearings throughout, internal cable routing, vinyl frame protection skin, and an FLP tool storage system built into the suspension link are the kind of details that separate a properly engineered frame from the competition. Up front, the Fox 36 Float Performance GRIP 160mm fork delivers confident, controlled suspension for everything from trail days to black diamond descents. Fox Float Performance 2-Position rear shock, Shimano Deore XT M8100 12-speed drivetrain, and Shimano MT520 four-piston hydraulic disc brakes round out a spec that's genuinely hard to fault at this price point.

Key Features:
- Orbea Rise LT Hydro hydroformed alloy frame — 150mm rear travel, 29" wheels
- Attitude Adjust geometry flip chip — 64° / 64.5° head angle
- Concentric Boost 12x148mm rear axle design
- Shimano EP801 RS motor — 85Nm torque, 20mph pedal assist
- 630Wh integrated battery
- EN600-L handlebar remote — intuitive assist control
- Fox 36 Float Performance GRIP fork — 160mm travel
- Fox Float Performance 2-Position Evol rear shock
- Shimano Deore XT M8100 12-speed drivetrain — 10–51T cassette
- Shimano MT520 four-piston hydraulic disc brakes
- OC Mountain Control MC31 alloy handlebar — 800mm
- Maxxis Assegai 2.5" 3C/EXO+/TR front / Maxxis Minion DHR II 2.4" WT rear
- Fully sealed bearings, fully internal cable routing, vinyl frame skin
- FLP tool storage in suspension link
- Available sizes: S, M, L, XL
