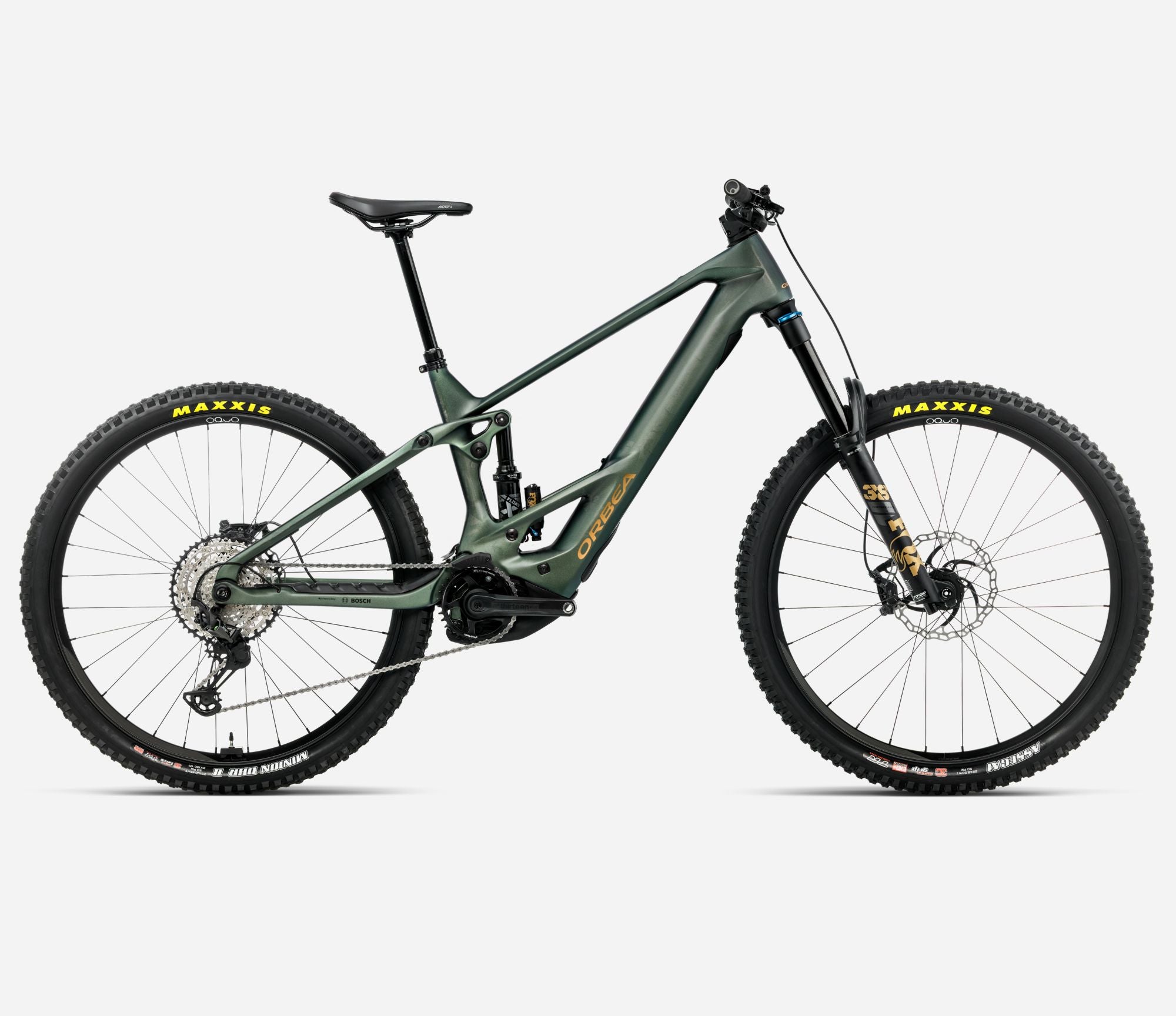

2026 Orbea Wild M10 20mph

Whatever the trail asks, the answer is yes. The 2026 Orbea Wild M10 20mph is the apex of full-power eMTB engineering — a bike designed and race-proven without compromise, built for riders who want to go farther, ride harder, and push deeper into the mountains than was ever possible before. This is the carbon M10 build straight from the factory, for maximum grip, traction, and playful agility on the gnarliest terrain.

The full OMR carbon frame combines high-modulus and high-strength fibres in a precision laser-cut, EPS-moulded layup that achieves a stiffness-to-weight ratio exceptional for a full-power eMTB. The SBS battery system positions the 750Wh Bosch Powertube low and centrally in the frame — significantly lowering the centre of gravity compared to traditional battery placement — while the integrated Kiox 400C display is seamlessly embedded into the top tube with a USB-C charging port and customisable navigation functions. A lightweight injection-moulded motor cage protects the Bosch Performance Line CX motor from rock strikes and trail debris, and an oversized main pivot handles even the most aggressive riding manoeuvres without flex or play.

Steep'n'Deep geometry — long reach, slack head angle, low standover, and a straight seat tube accommodating dropper posts up to 240mm — puts you in the most confident, capable position on technical terrain. Mullet-ready design with two shock linkages means you can run 27.5" or 29" rear wheels without affecting geometry. Fox 38 Float Performance GRIP 3-Position 170mm fork and Fox Float X Performance Trunnion 2-Position rear shock deliver the suspension performance this bike demands, and Shimano XT M8100 12-speed shifting keeps everything smooth under motor-assisted loads.

Key Features:
- Orbea Wild OMR carbon frame — EPS mould, laser-cut layup, Concentric Boost 12x148
- Steep'n'Deep geometry — long reach, slack head angle, dropper post up to 240mm
- Bosch Performance Line CX motor — 85Nm torque, 20mph pedal assist
- 750Wh Bosch Powertube SBS battery — low & central frame placement
- Integrated Kiox 400C display — USB-C charging, navigation, customisable
- Injection-moulded motor cage — rock and impact protection
- Oversized main pivot for maximum rigidity
- Fox 38 Float Performance GRIP 3-Position fork — 170mm travel
- Fox Float X Performance Trunnion 2-Position Evol LV rear shock — custom tune
- Shimano XT M8100 SGS 12-speed drivetrain — 10–51T cassette
- Shimano MT520 four-piston hydraulic disc brakes — 203mm front / 180mm rear
- OC Mountain Control MC31 alloy wheels — 30mm internal width
- Maxxis Assegai 2.5" 3C/EXO+/TR front / Maxxis Minion DHR II 2.4" WT rear
- Internal cable routing, vinyl frame skin, fully sealed bearings
- Available sizes: S, M, L, XL
