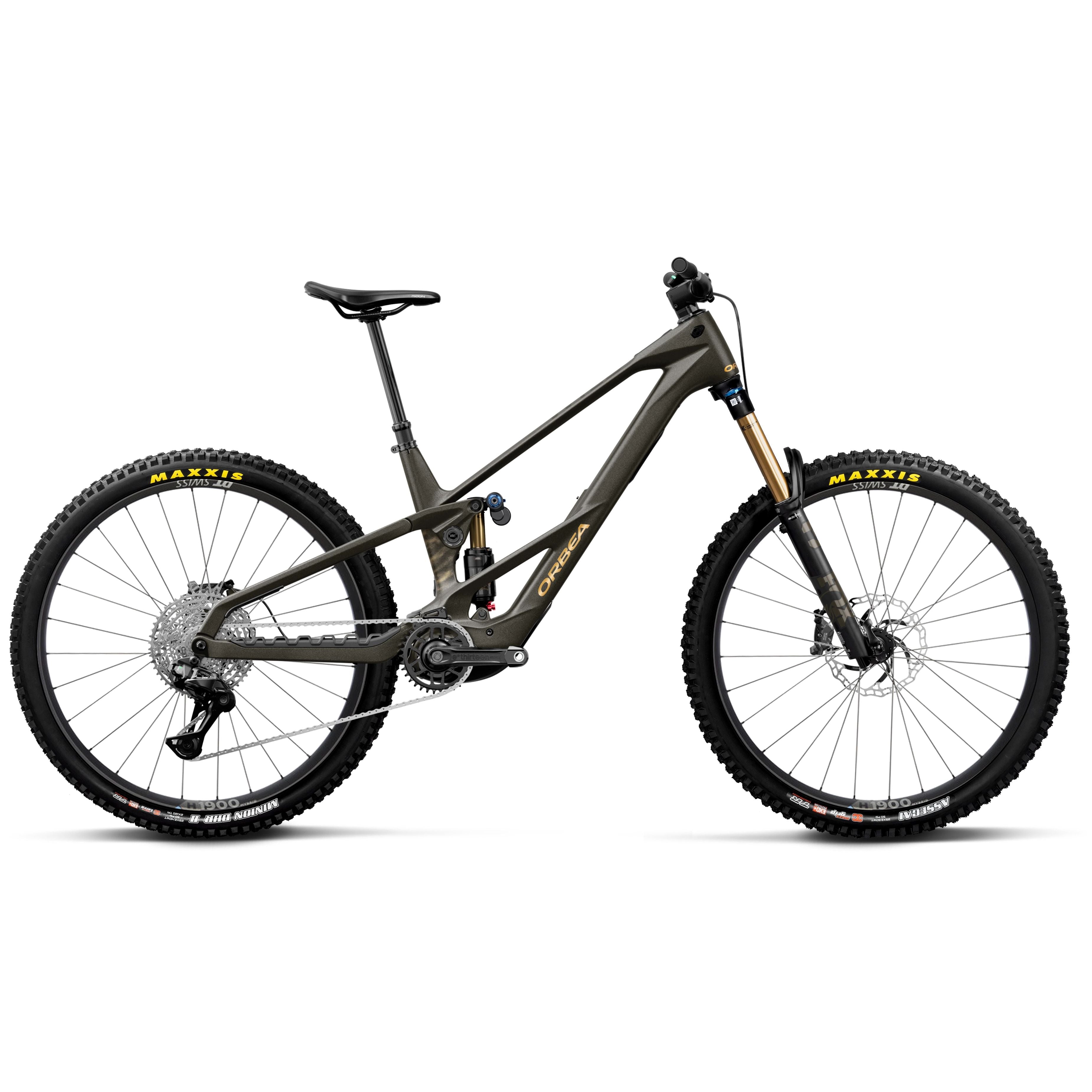

2027 Orbea Wild LT M10 20mph

Regular price $11,899.00
ColorMagic Gold Clear View Matt / Titan Gold Gloss
SizeS
Description

The 2027 Orbea Wild LT M10 is Orbea's most capable long-travel eMTB yet — built on the new Wild LT platform and powered by the DJI Avinox M2S motor with Orbea's own RS tune for faster, more reactive climbing power right when you need it. OMR Carbon: High modulus, high-strength fibers and advanced carbon manufacturing techniques let Orbea use less carbon while maintaining strength and rigidity. The carbon frameset also includes a carbon link, removing further mass higher up in the frame. Gravity Kinematics: A 170mm fork matched with 170mm of rear travel gives the Wild LT M10 the balance to perform on the steepest, most technical terrain. Want more? Step up to the optional 180mm fork for the most aggressive riding. RS Ecosystem: Orbea's RS models seamlessly integrate motor control, ride information, and smart dropper functions into one connected system. One battery, one controller, more control on the trail. DJI Avinox M2S Motor: Orbea's custom RS tuning makes the motor respond faster, giving you a stronger, more immediate punch when you need it most on technical climbs. Maximised Ground Clearance: Carefully tuned bottom bracket height and 155mm cranks on all sizes mean you can keep pedalling even on the roughest climbs. Fully Loaded Pivot: A multitool with 2, 3, 4, and 5mm hex keys is held securely in place with a magnet, while the rear axle holds a 6mm hex key for quick adjustments right at hand. Built around a Shimano XT drivetrain and brakes for reliable, race-ready performance, the Wild LT M10 is ready for serious enduro riding right out of the box. And with Orbea's MyO program, you can customise paint, components, and build to make it entirely your own. Available at Obsession Bikes. Financing available.

Key Features:

OMR Carbon Frame · 170mm Travel Front & Rear (180mm Optional) · DJI Avinox M2S Motor with Orbea RS Tune · RS Connected Ecosystem · Shimano XT Drivetrain & Brakes · 155mm Cranks All Sizes · Integrated Multitool · MyO Custom Build Program · Tubeless Ready



2027 Orbea Wild LT M10 20mph

$11,899.00

Specifications

Motor

Avinox M2S

Battery

Avinox 800Wh

Fork

Fox 38 Float Factory 170, Grip X2, 15x110, Kashima

Frame

Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148

Shock

Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm

Chain

Shimano M6100

Cassette

Shimano CS-M7200 10-51t 12-Speed

Chainring

e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine

Brakes

Shimano XT 8220 Hydraulic Disc

Rotor

Galfer Wave Rotors 200mm front / 200mm rear

Wheelset

DT Swiss H 1900 Spline 30c

Tires

Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR & Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR

Saddle

Fizik Aidon 208x145mm manganese rail
