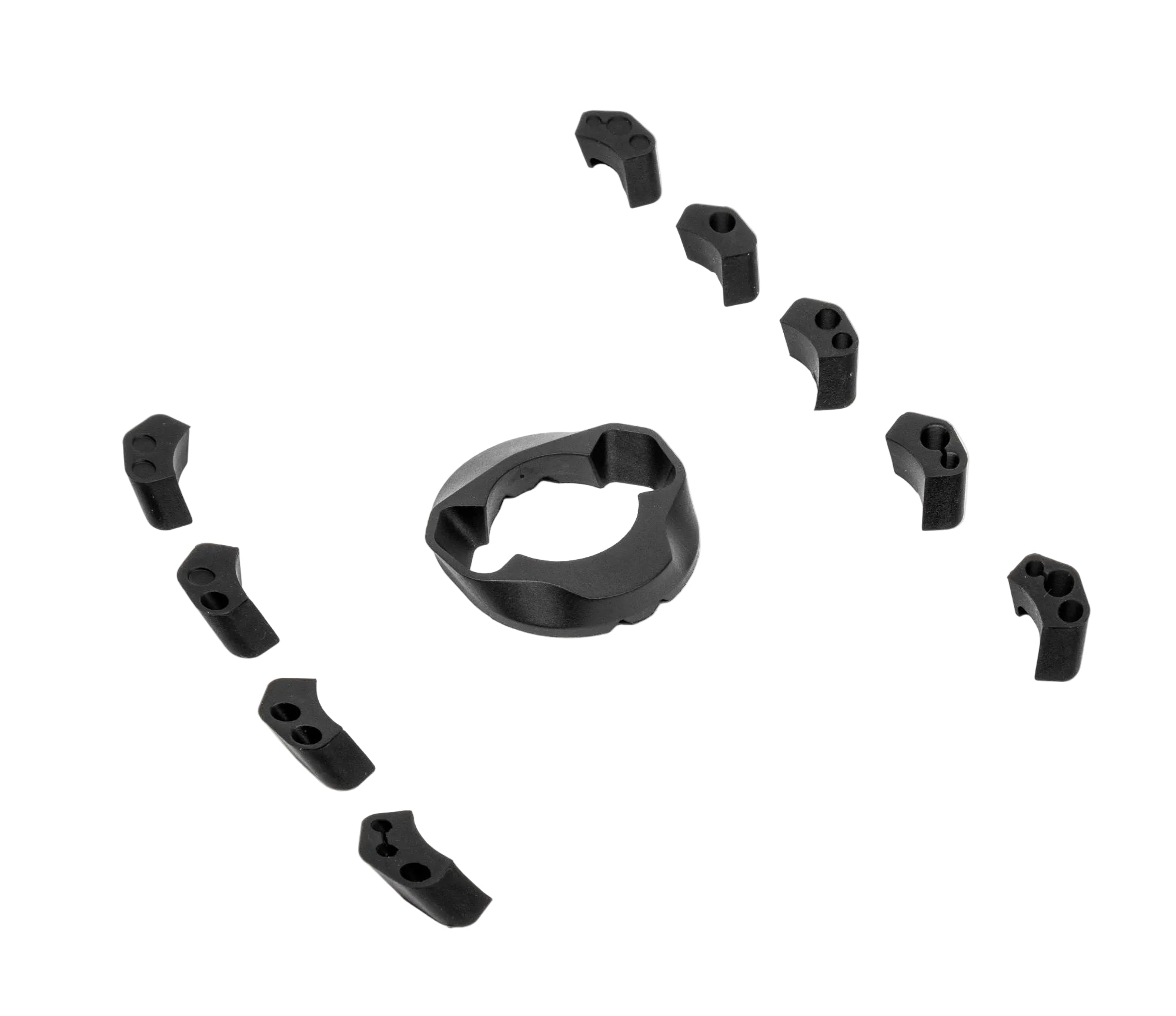

Orbea HS02-06 Universal Headset Cable Collector

Want to run a standard non-OC stem on your Orbea frame with internal cable routing? The Orbea HS02-06 Universal Headset Cable Collector makes it possible. Designed for Orbea's HS02 headset with internal cable routing, this universal collector allows the use of standard stems compatible with round headset spacers — giving you more flexibility in cockpit setup without sacrificing clean cable management.

The kit ships with a full set of SIC grommets covering every cabling combination through the headset, so you're covered regardless of your brake hose and derailleur cable configuration.

Important: When used with a standard stem, the Spinblock steering angle limitation function is no longer active. Orbea does not guarantee compatibility with stems not originally mounted on Orbea bikes — always verify that your chosen stem allows correct assembly of all components and that cables enter the collector properly. Refer to your bicycle's Orbea Bluepaper technical manual for assembly instructions.

Key Features:

- Universal headset cable collector for Orbea HS02 internal cable routing headsets
- Enables use of standard non-OC HS02 stems with round headset spacers
- Includes full set of SIC grommets for all cabling combinations:
  – Grommet SIC L1 HS02-42: 4mm + 4mm blind
  – Grommet SIC L2 HS02-43: 4mm + 4mm
  – Grommet SIC L3 HS02-44: 4mm + 4mm + 3mm
  – Grommet SIC R1 HS02-45: 5mm
  – Grommet SIC R2 HS02-46: 4mm + 5mm
  – Grommet SIC R2e HS02-47: 3mm + 5mm
  – Grommet SIC R3 HS02-48: 4mm + 3mm + 3mm
- Note: Spinblock steering limiter function is NOT active with standard stems
- Part Reference: HS02-06 / XC60
- Refer to Orbea Bluepaper manual for full assembly instructions
