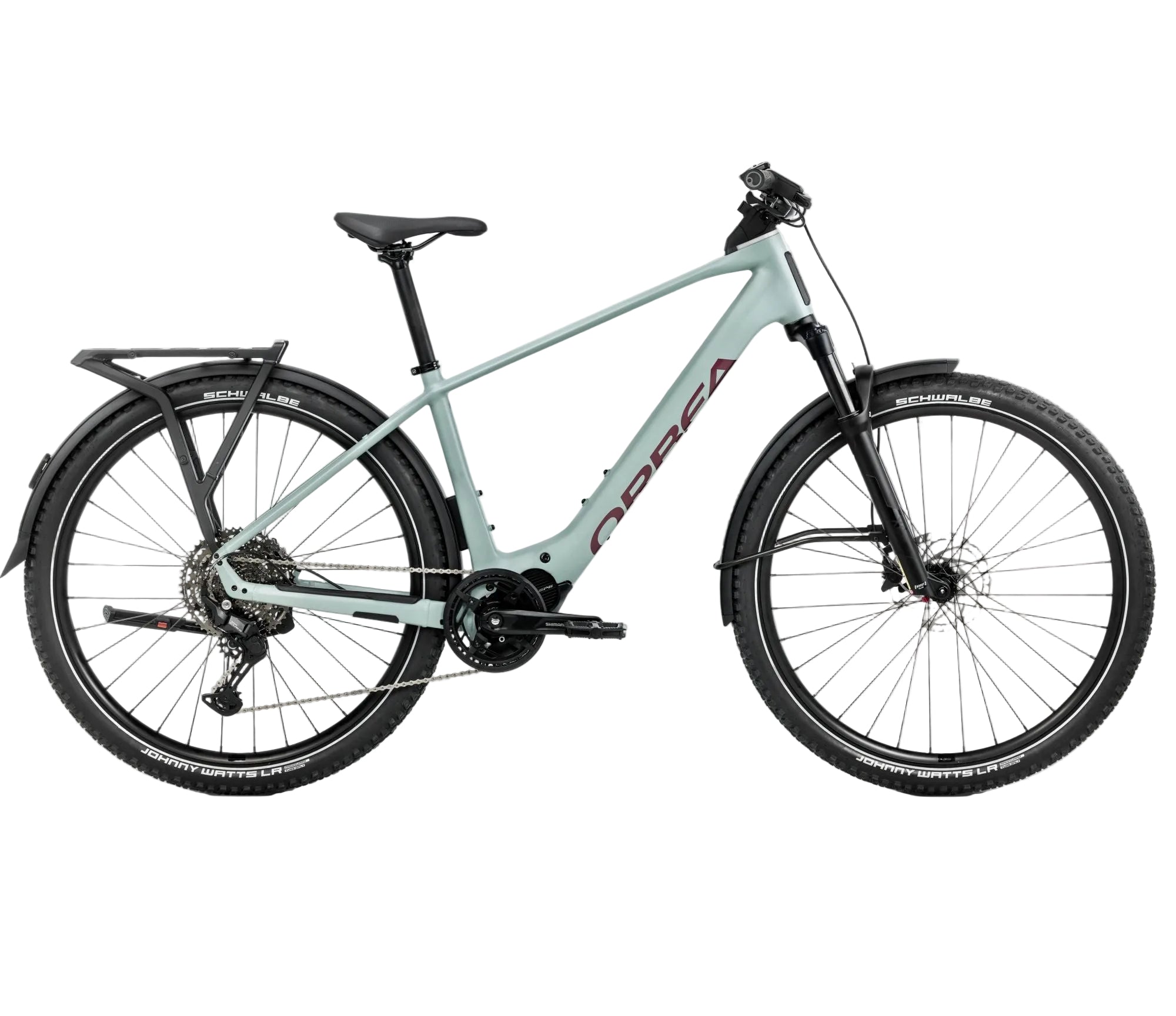

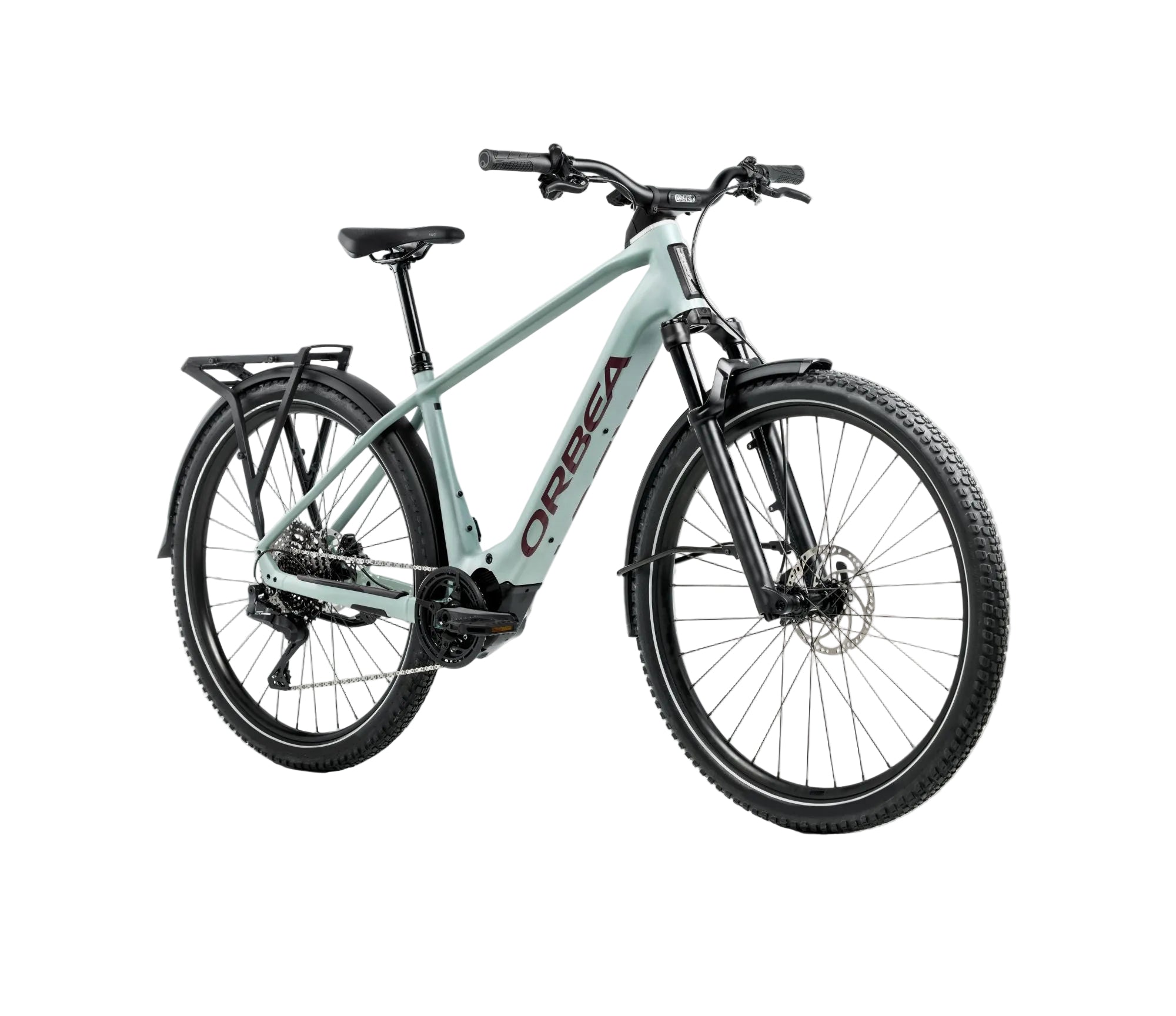

Orbea Kemen ADV 20

The Orbea Kemen ADV 20 is the adventure-ready urban eBike built for riders who refuse to be limited by terrain. Whether you're carving through city streets, grinding up North Shore hills, or pushing off onto gravel paths and light trails, the Kemen ADV 20 handles it all without breaking a sweat.

At the heart of the build is Shimano's EP600 mid-drive motor (600W, 85Nm of torque) paired with a 630Wh integrated battery, delivering smooth, powerful assistance that makes even the steepest climbs feel effortless — with enough range to keep going all day. And if you need even more capacity, an optional 252Wh range extender battery can be added for 33% more range.

The hydroformed 6061 aluminium frame is lighter and stiffer than it looks, with full internal cable routing for a clean, uncluttered build. A 100mm SR Suntour XCR Air suspension fork takes the edge off rough pavement and trail surfaces, while Magura AT2 hydraulic disc brakes deliver reliable stopping power in any conditions. Schwalbe Johnny Watts 60mm knobby tires with puncture protection and reflective stripes keep you rolling confidently on everything from wet asphalt to dirt paths.

Every Kemen ADV 20 ships fully equipped for real-world use — integrated automatic lighting front and rear, a 30kg-capacity MIK HD rear rack (Ortlieb QL3.1 and MIK Side compatible), internal USB-C charging, and kickstand included. Available in standard and low-step frame shapes across four sizes.

Key Features:

- Motor: Shimano EP600 mid-drive — 600W, 85Nm
- Battery: 630Wh integrated — compatible with 252Wh range extender (+33% capacity)
- Suspension: SR Suntour XCR Air fork — 100mm travel, Boost 15mm thru-axle
- Brakes: Magura AT2 hydraulic disc
- Drivetrain: Shimano Cues 10-speed
- Tires: Schwalbe Johnny Watts 60mm — puncture protection & reflective stripe
- Frame: Hydroformed 6061 Alloy — internal cable routing (ICR), Boost 148x12
- Integrated automatic front & rear lighting
- Rear rack: 30kg capacity — MIK HD, MIK Side & Ortlieb QL3.1 compatible
- Front carrier compatible (10kg capacity, sold separately)
- Child seat & trailer compatible
- USB-C charging port integrated into cockpit
- Available in: Diamond Top Bar & Low Step frame shapes
- Sizes: SM, MD, LG, XL

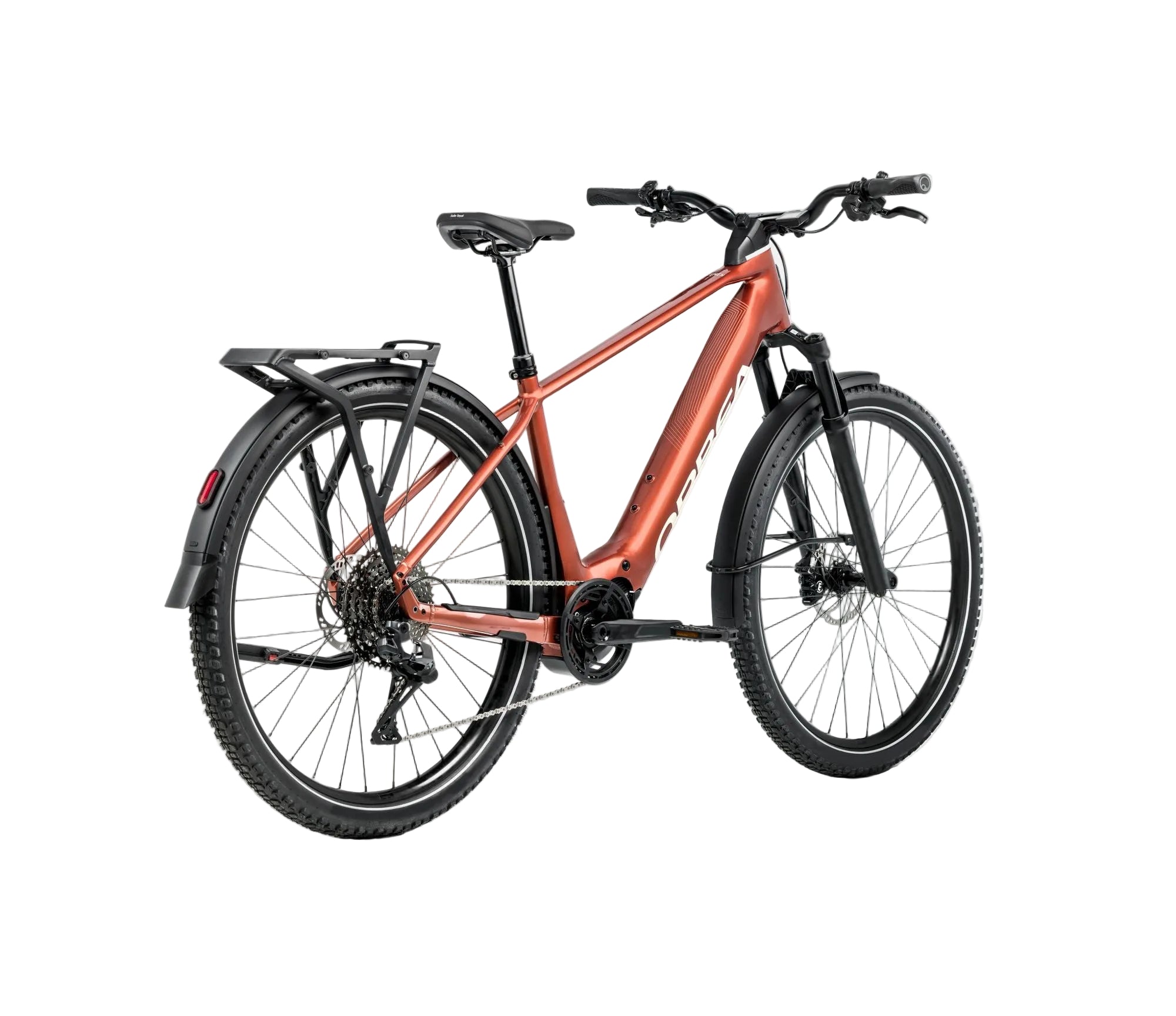

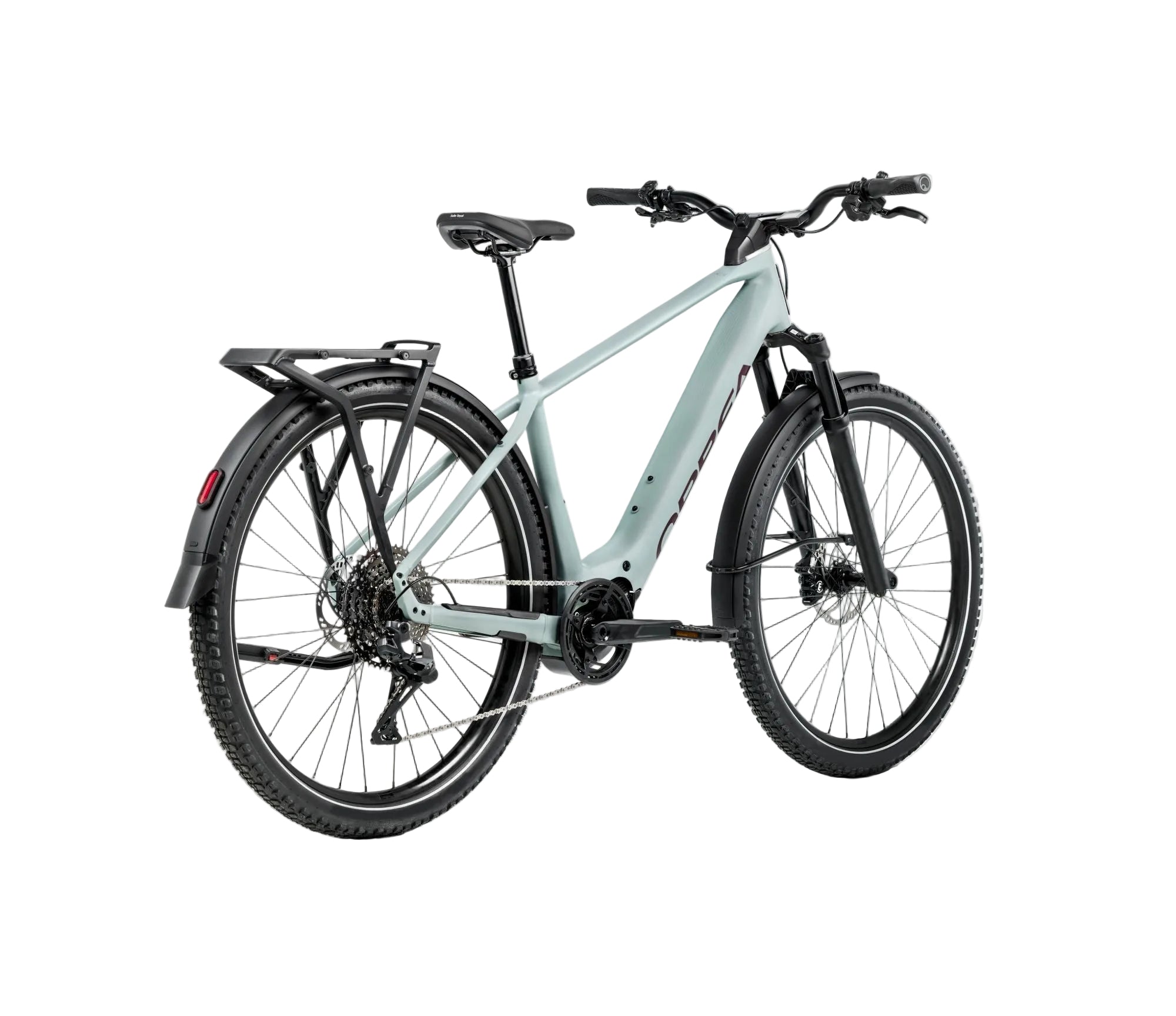

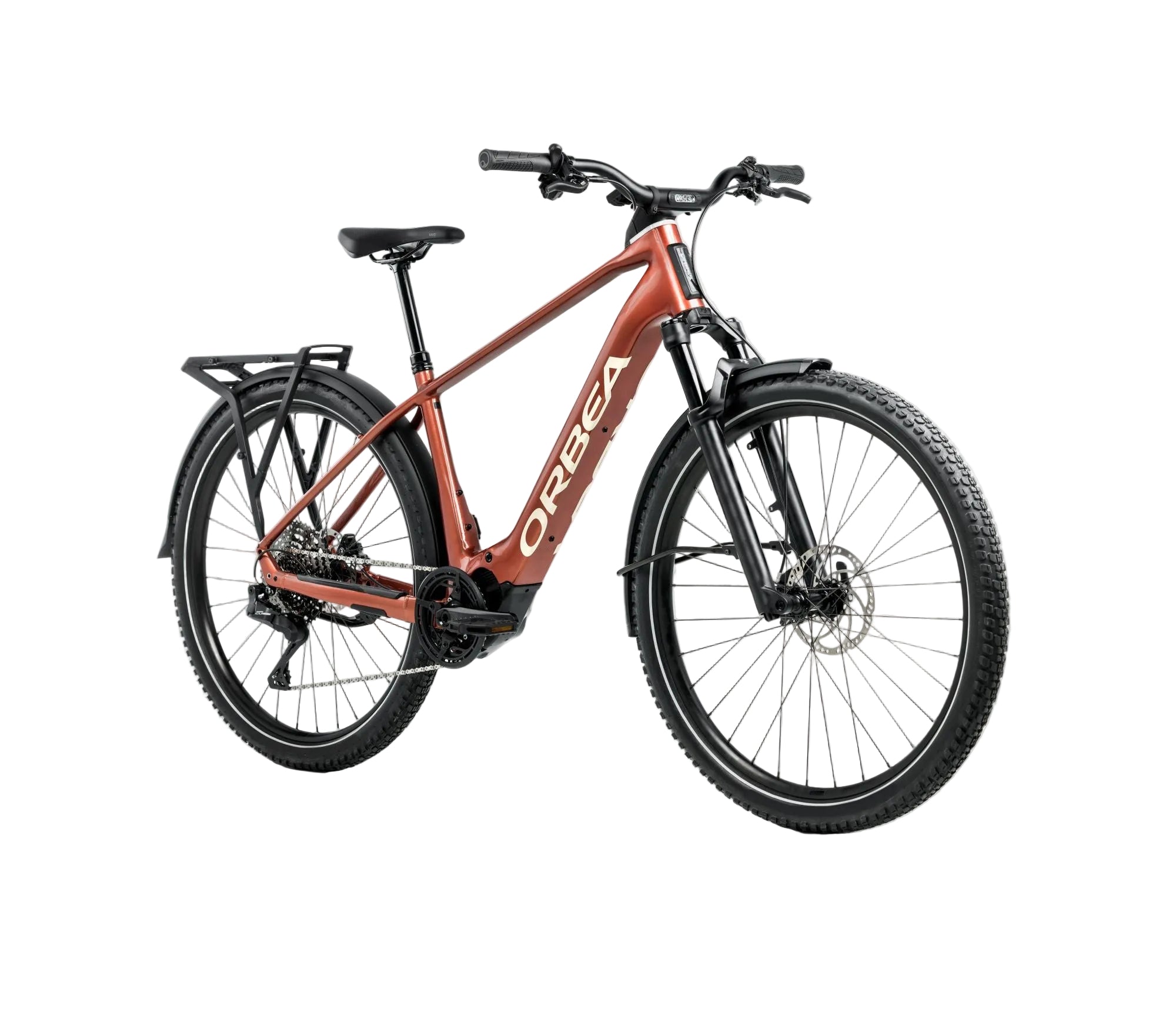

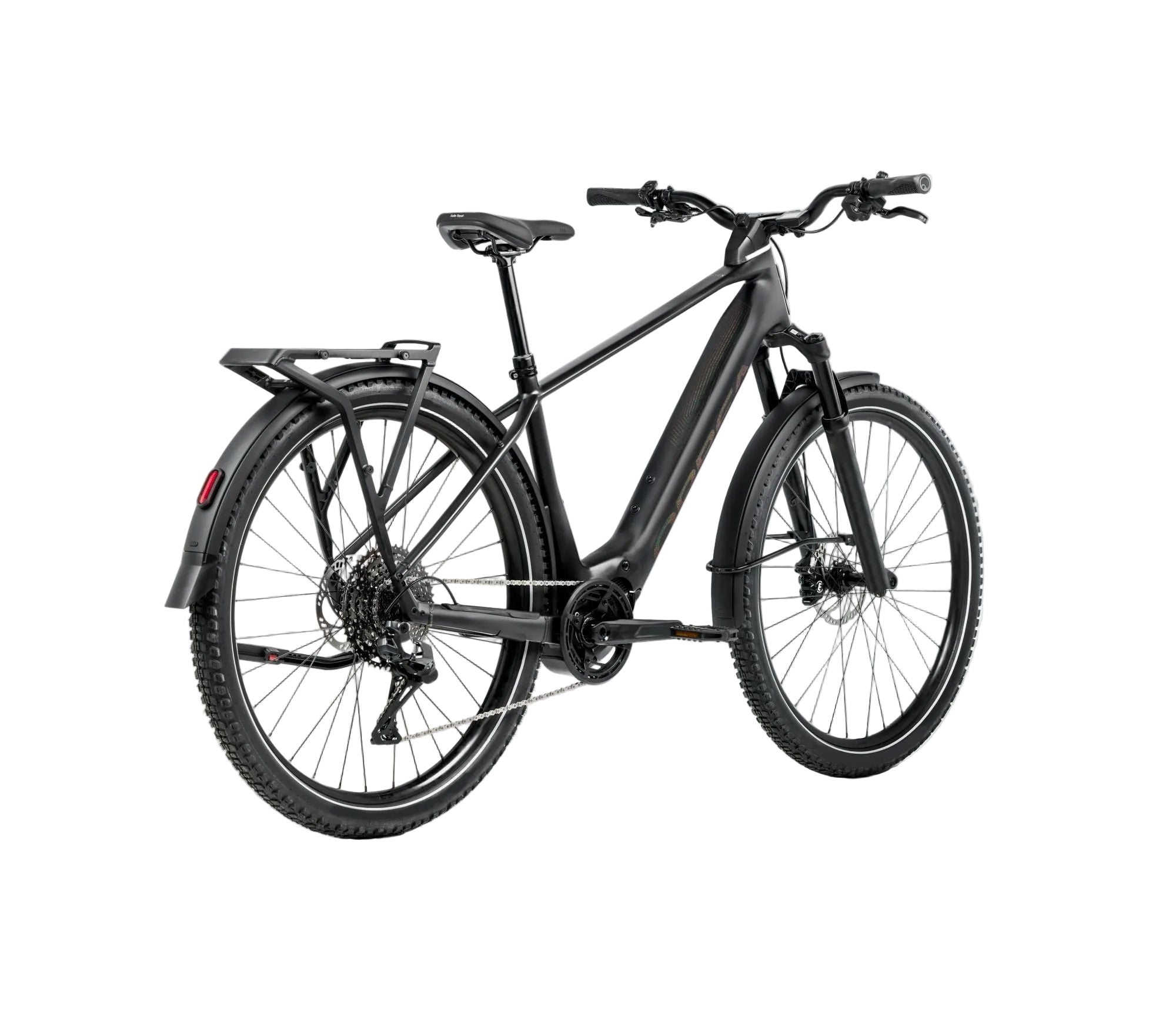

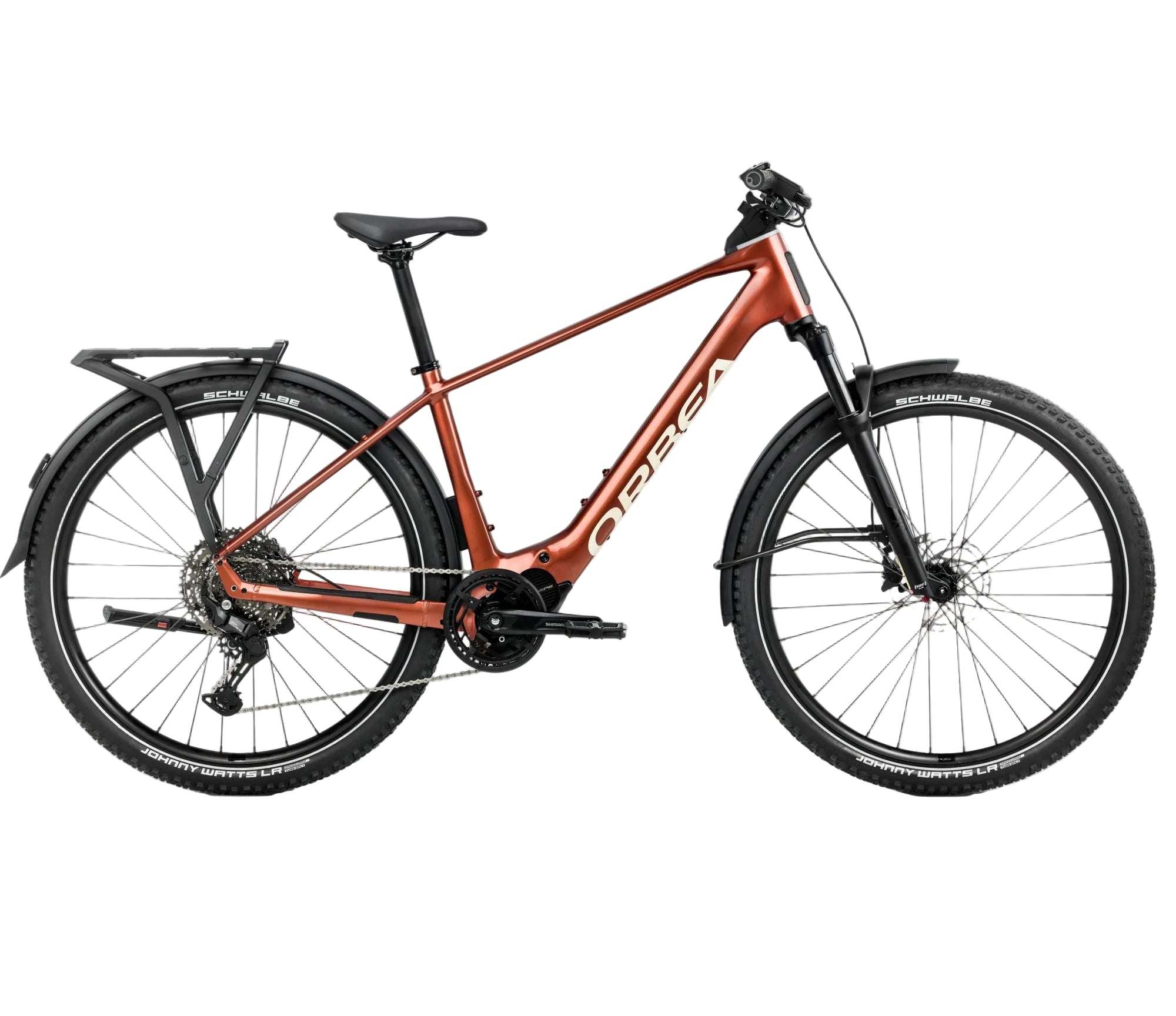

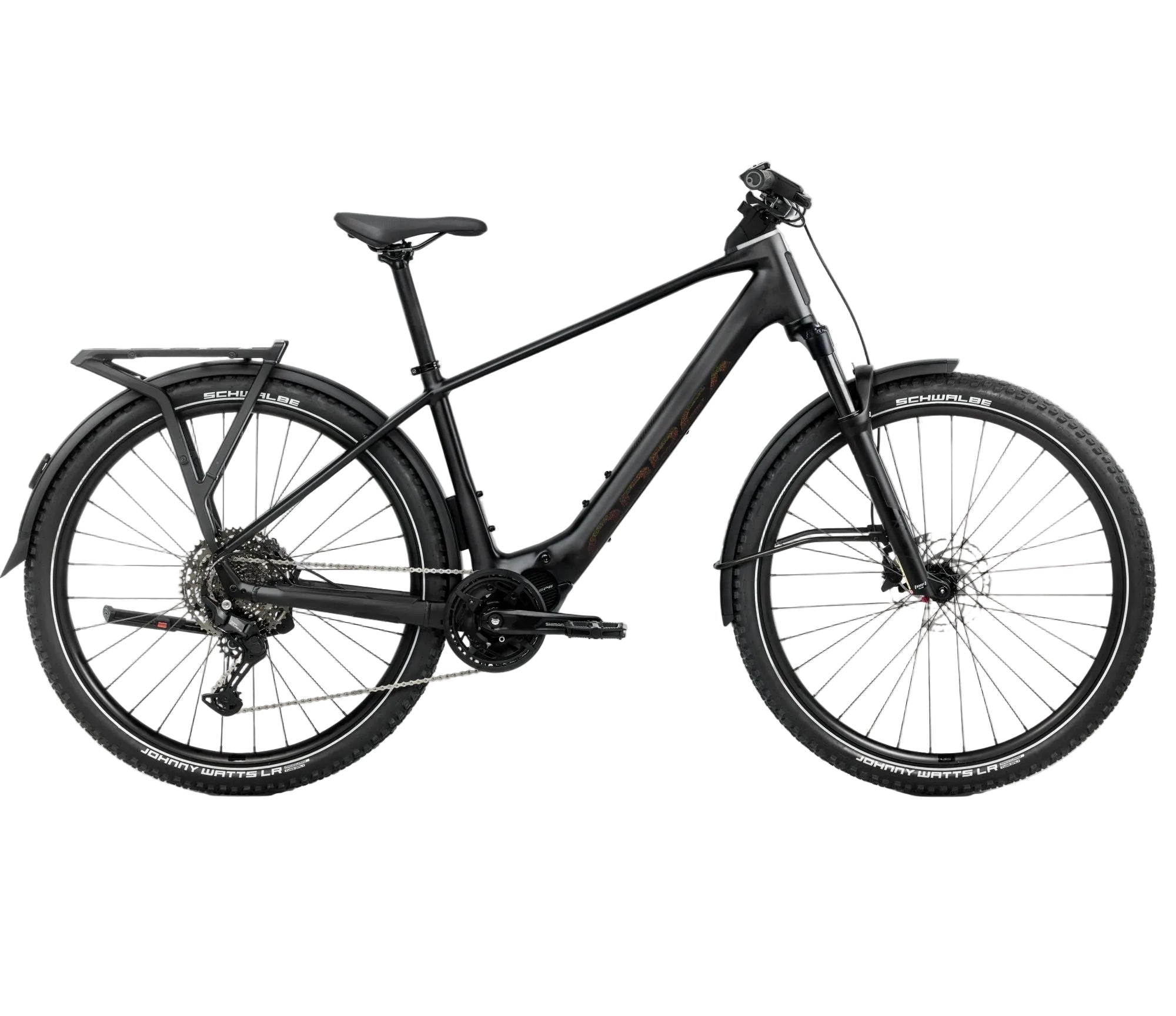

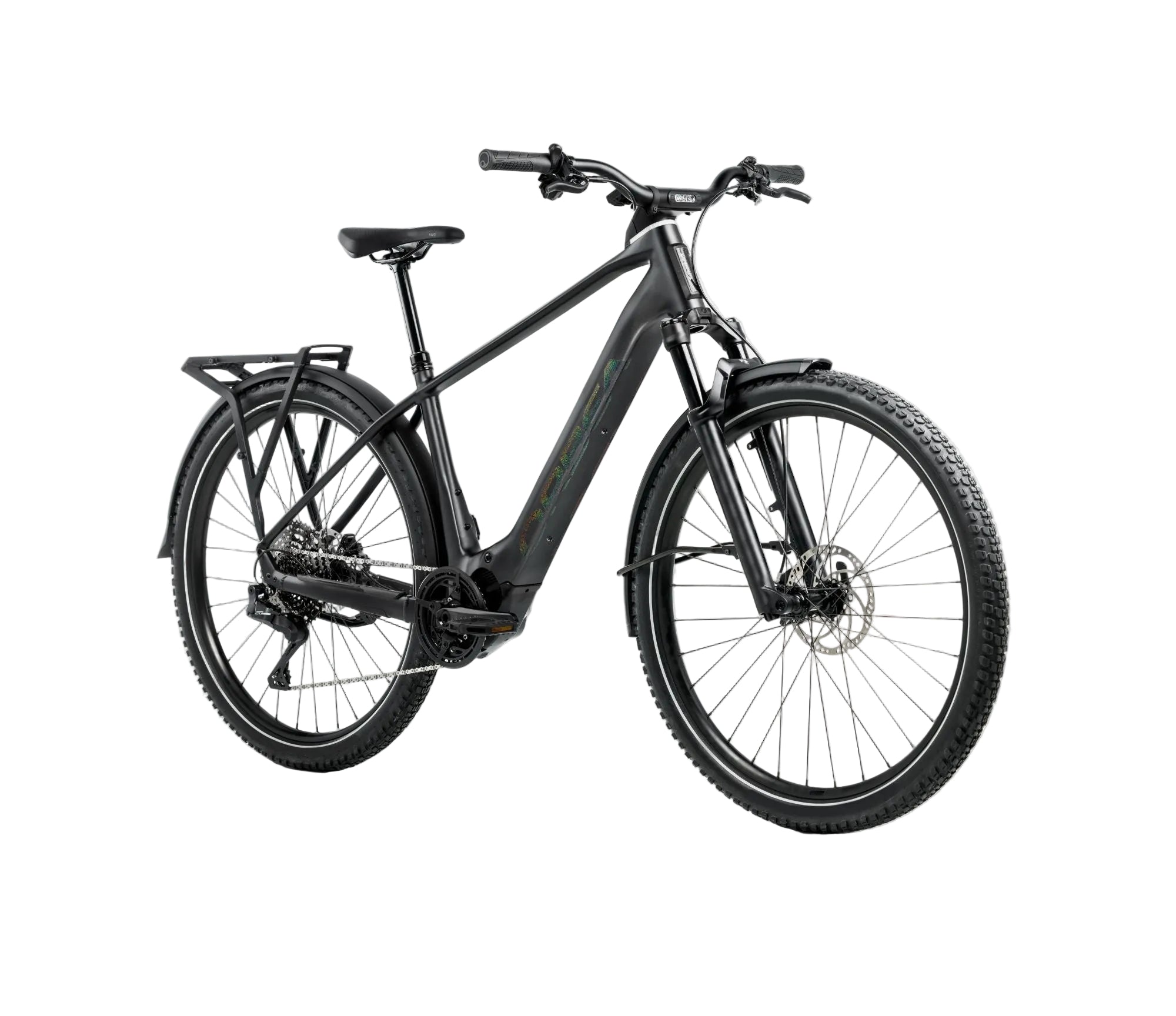

- Colours: Diamond Black, Blue Stone, Mars Red
