Product Overview

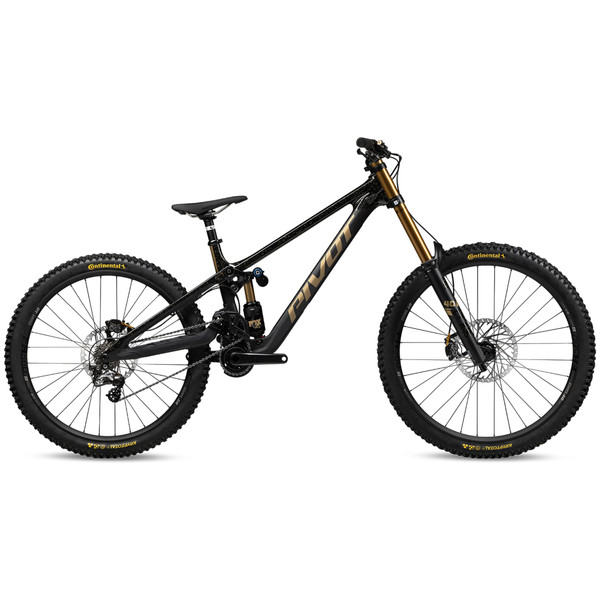

Developed with suspension legend Dave Weagle, the cutting-edge 6-bar design (DW6) provides 210mm of mid-high pivot rear travel, delivering unmatched control and stability on the most challenging descents. The striking (and incredibly quiet) dual-chain drive boosts efficiency while the six-bar linkage delivers insane square-edge bump compliance, letting the bike roll over obstacles with ease and allowing you to maintain momentum and power through rough terrain. The Phoenix began its life as a carbon lugged prototype. A carbon frame test bed allowed us to develop faster, iterate more efficiently, and ultimately push our prototype as close as possible to the finished product. The result is a bike that is both radically new and elegantly refined.
| Specification | Details |
|---|---|
| Frame | Full carbon fiber with DW6 linkage, dual idler pulley & dual chain drivetrain, adjustable geometry via flip-chip, injection molded downtube & chainstay protection and fork-stop integrated cable ports. |
| Fork | Fox Factory 40 29”, 52mm offset, GRIP X2 - 203mm |
| Shock | Fox Factory Float X2, 75 x 225mm |
| Headset | Pivot Precision Sealed Cartridge - DH |
| Handlebar | Phoenix Team Low Rise Carbon - 800mm |
| Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team DH - 45mm |
| Shifters | Shimano Saint M820 10-Speed |
| Rear Derailleur | Shimano Saint M820 10-Speed |
| Bottom Bracket | Praxis PF92 |
| Chain | Shimano CN-6701 10-Speed |
| Cassette | Shimano Tiagra CS-HG500 11-25t |
| Crankset | Praxis DH9-73 M30 160mm |
| Chainring | Pivot 27T |
| Brakes | Shimano Saint M820 4-piston |
| Brake Rotors | Galfer Shark 6-Bolt - 223/203mm |
| Saddle | Phoenix WTB Team High Tail Trail |
| Seatpost | Phoenix Race Aluminum 31.6mm |
| Front Wheel | DT Swiss FR 560 w/ DT Swiss 350 hub - 29" x 20x110 |
| Front Hub | DT Swiss 350 20x110mm |
| Rear Wheel | DT Swiss FR 560 w/ DT Swiss 350 hub - 29" x 12x157 |
| Rear Hub | DT Swiss 350 12x157mm |
| Rims | DT Swiss FR 560 |
| Front Tire | Continental Kryptotal-F 29" x 2.4" 3C, Super Soft, DH Casing |
| Rear Tire | Continental Kryptotal-R 27.5" x 2.4" Super Soft, DH Casing |
| Weight | 35.4lbs/16kg |
